SONUS Assessment Starter System Class 2 - IC-NK013

ORDER ME IN
Product code: IC-NK013

Order Me In, once ordered this item will likely dispatch before the 06th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

This Noise Assessment System for Noise at Work provides you with everything you need to perform assessments to The Control of Noise at Work Regulations 2005. Supplied with a class 2 integrating sound level meter, the GA216I, which is fully compliant with IEC 61672:2013 Class 2, and a single level class 2 acoustic calibrator, GA601, which meets IEC60942:2003 Sound Calibrators, Class 2/C.

Read more | Need help? 3 Hour Business Reply

$2,529.20 AUD + GST
 $2,782.12 AUD Inc. GST

This entry level system provides you with all the equipment you need to carry out assessments to The Control of Noise at Work Regulations 2005 at the lowest possible cost.

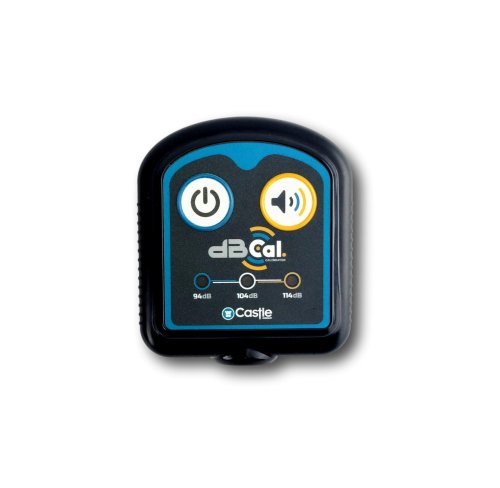

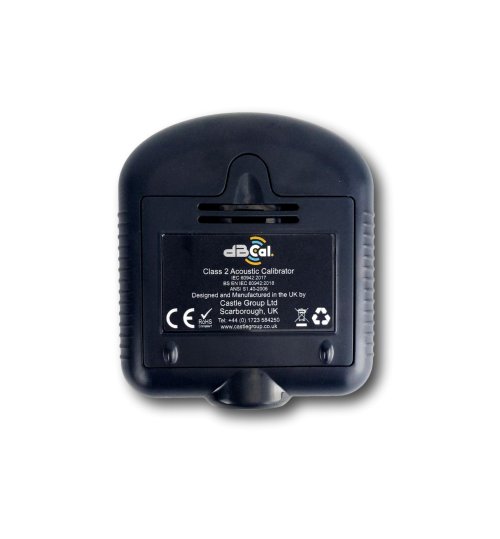

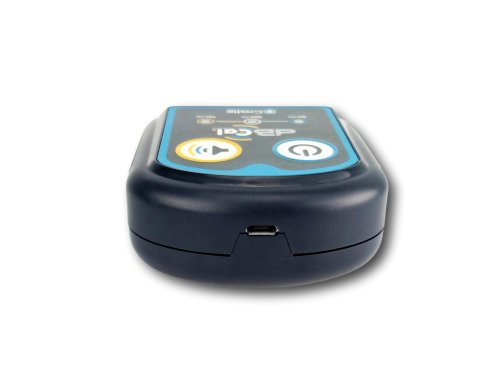

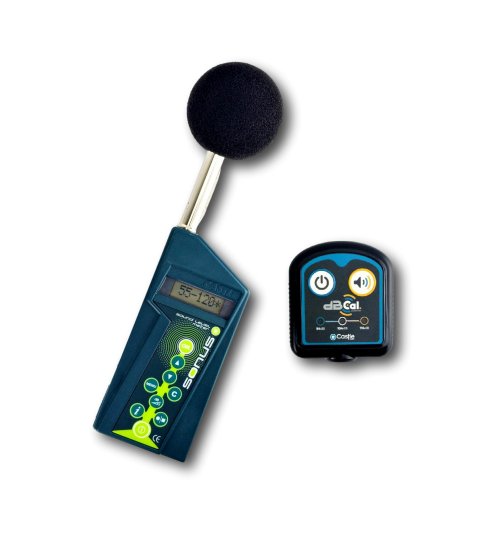

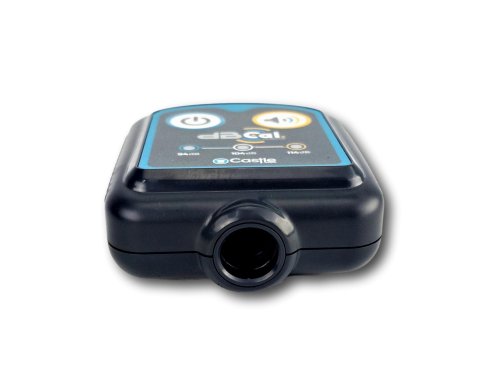

Supplied with a class 2 integrating sound level meter, the GA216I, which is fully compliant with IEC 61672:2013 Class 2, and a single level class 2 acoustic calibrator, GA601, which meets IEC60942:2003 Sound Calibrators, Class 2/C.

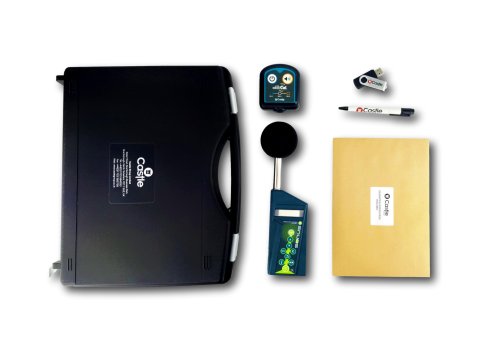

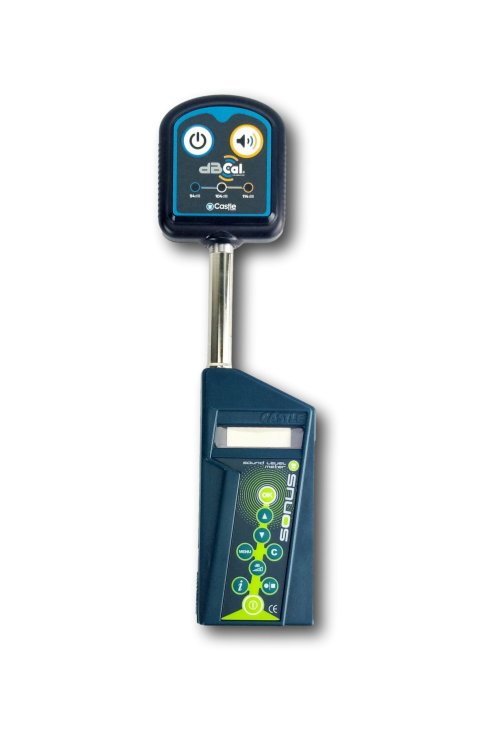

Sound meter and calibrator are supplied a hard wearing carry case which is perfect to transport your equipment for noise at work assessments in the working environment.

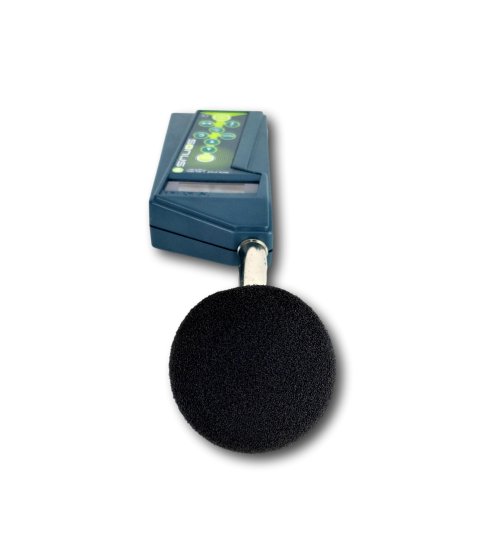

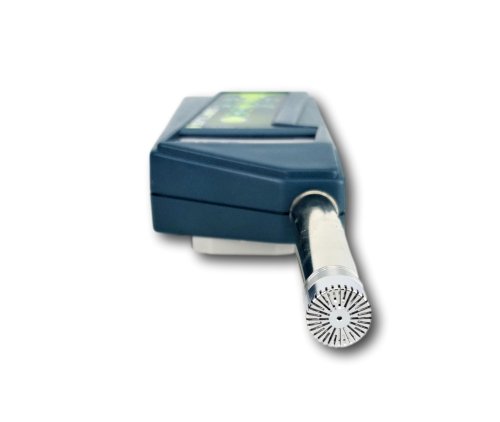

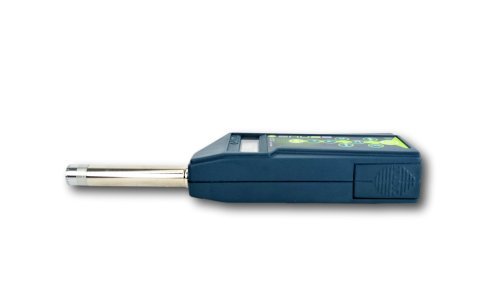

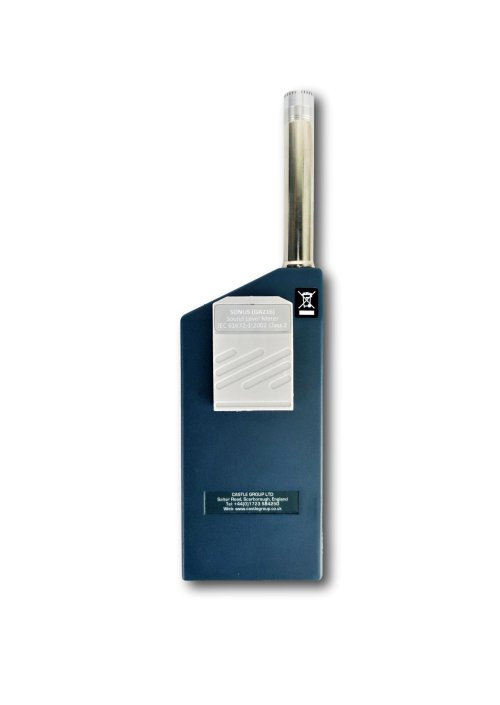

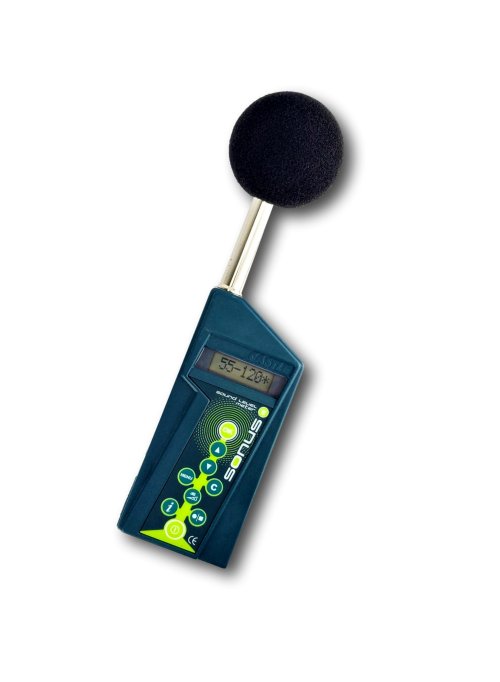

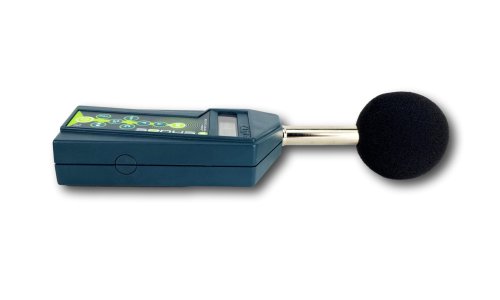

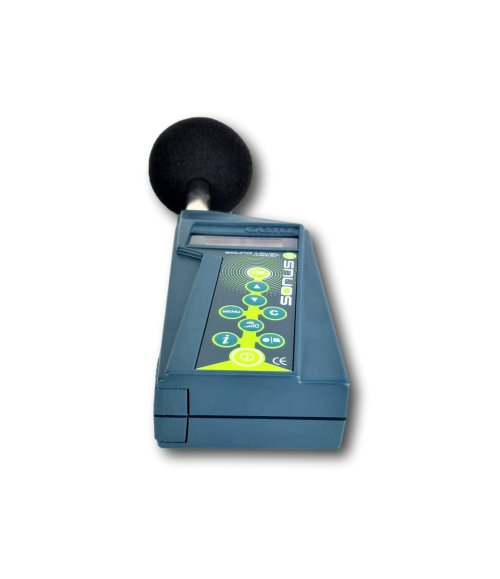

The Castle GA216I sound level meter brings simplicity and power to the worlds of Noise at Work sound monitoring. From a basic sound pressure meter to full data-logging, combined sound and dosemeter, the range of systems covers a wide diversity of applications.

Features:

Designed for Industrial Safety Officers and Safety Managers for compliance with the Health and Safety at Work Act; Noise at Work regulation 2005. The Castle GA216I provide all the necessary information you need for completing Noise at Work risk assessments.

- Integrated equivalent level (Leq) measurement
- Personal Sound Exposure Level (LEpd)
- Sound Pressure (Lp) to 0.1 dB resolution
- 'A' and 'C' frequency weighting (toggle)
- 'Slow' and 'Fast' Time weighting (toggle)
- Simultaneous measurement of Lp, Lmax, and Cpeak
- Lmax - maximum Lp hold (rms.)
- Cpeak - maximum peak level
- Elapsed time (running time hrs, min, sec)
- Single Event Sound Exposure Level (LAE)
- Overload and Under-range indication
- Battery condition (Life approx. 12 hours)

GA216I specifications:

- Applicable Standards: IEC 61672-1:2013 (Integrating, Sound Exposure and Sound Level Meters); IEC 60651:2001 (Sound Level Meters); IEC 60804:2000 (Integrating Function)
- Display: Back-lit LCD panel (8x1 Characters) Alpha-Numeric display for measured results
- Measuring Range: 35dB to 140dB
- Linear operating range (IEC61672-1): 65dB 3
- Measurement Ranges (IEC61672-1): 35dB-100dB; 55dB-120dB; (Reference Range) 75dB to 140dB
- Noise Floor: Typical A Weighting <32 dB(A) rms; C Weighting <38 dB(C) rms
- Frequency Weighting: A and C to IEC 61672-1:2002 and IEC 60651:2001
- Frequency Range: 12.5 Hz to 20 kHz (including microphone); 1 Hz - 20 kHz (electrical characteristics)
- Time Weighting: Slow and Fast
- Instrument Response: Simultaneous rms. and Peak
- Measurement Response: Lp (Sound Pressure Level), Leq (Equivalent Sound Level), Lmax (maximum Level), Cpeak (Max. Peak Level), LEpd (Sound Exposure Level), LAE (Single Event Sound Exposure Level)
- Other Displays: Elapsed time, Overload, Battery Life
- Calibration: Software controlled 91.0 to 120.0 dB (1kHz) in 0.1 dB steps
- Processing: A to D Converter, 12-bit Controller, 8MHz, micro-controller
- Output: AC Output = 16.4mVrms at 94dB (un-weighted and not affected by range) DC Output = 40mV/dB (weighted and ranged)
- Power Requirement: Batteries: 1 x 6LR61 (size PP3), Life: >12 hours (alkaline batteries, continuous operation)
- Size: 60mm (width) x 30mm (depth excluding pocket clip) x 135mm (height without microphone) or 210mm (height with microphone)
- Weight: 200g (without battery)
