SONIK-E Dedicated Environmental Data-logging Sound Meter Class 1 - IC-GA142E

ORDER ME IN
Product code: IC-GA142E

Order Me In, Once ordered this item will likely dispatch before the 03rd of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

Ultra low noise measurement capability down to 20dB. Simultanously measures LAeq, LCeq and PeakC with A, C and Z Frequency Weighting. It's solid, dependable and is our most robust sound meter yet making it perfect for your most rugged environments.

Read more

$4,219.70 AUD + GST
 $4,641.67 AUD Inc. GST

Ultra low sound level detection with the SONIK-E, Environmental Sound Meter. SONIK-E is the pick up and go noise meter for any environmental noise assessor. It's solid, dependable and is our most robust sound meter yet making it perfect for your most rugged environments.

Part of the new SONIK Sound Meter Range launched by Castle in 2018, the Class 1 SONIK-E Environmental Sound Meter combines the latest noise measuring technology with our industry leading product development experience.

Designed to be a valuable addition to any Environmental Assessors toolkit, the SONIK-E is capable of performing measurements for a variety of environmental noise applications, including BS 4142 Assessments, Boundary Noise, Construction Noise to BS 5228, Compliance Monitoring and Short Term Noise Assessments. For outdoor noise assessments where measurements are required for longer periods, a weatherproof casing system with weatherproof microphone housing is available.

Worry less about charging and more about measuring as SONIK-E has a massive 20 hour battery life and a large internal memory with storage for up to 4,000 result sets.

Your data is important, which is why SONIK works with both Cloud and PC based software that's both free and simple to use - giving you ultimate control over your data. Click the "Software" tab above for more information.

If you do end up with the occasional Noise at Work survey, then the SONIK-SE is an alternative that can turn its hand to that, and the SONIK-S is available if your requirement is mostly in the Workplace.

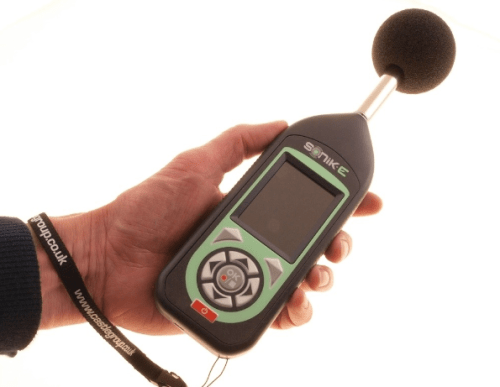

SONIK-E Sound Level Meter

Features:

- Dedicated Low Measurement Capability down to 20dB
- 4Mb internal flash memory, up to 4000 result sets
- FREE Cloud based or PC software available (upgradeable)
- 20-Hour Operation
- Weatherproof system available with optional modem for long-term monitoring
- Measures Lp, Leq, Lmax, LE, L10, L90, L(user)
- Measures parameters simultaneously including LAeq, LCeq and PeakC
- Under range and Overload indicators
- Ultra-simple to use
- A, C or Z frequency weighting selection
- A, C or Z Peak Measurements
- Slow, Fast and Impulse time weighting selection

Specifications

- Instrument Standards: IEC 61672-1: 2002 Class 1 Group X
- Linear Range: 20 to 90 dB/40 to 110 dB/60 to 130 dB
- Frequency Range: 1 Hz to 20 kHz (electrical characteristics)/Class 1: 10 Hz - 20 kHz (including microphone)
- Measurement Channels: Two
- Parameters: LP, LEQ, LMAX, LPEAK, LE, LAVG, TWA, Under Range, Overload
- Percentiles: L10, L90 and either L1, L5, L50, L95, L99
- Frequency Weighting: A, C and Z. Combinations of A, A&C simultaneous or A&Z simultaneous available for Lp, Leq and Lmax
- Time Weighting: Slow, Fast and Impulse
- Microphone: Class 1: 0.5 Pre-Polarized - Free Field (IEC) Pressure (ANSI) Sensititvity (50mV/Pa)
- Memory: 4MB Up to 4000 Data Intervals Maximum in one or multiple recordings
- Noise Floor (Typical): A Weighting less than 8.0dB, C Weighting less than 9.4dB, Z Weighting less than 11.8dB
- Microphone Preamplifier: Low Noise, Removable Preamplifier
- Display: 2.4 Full Colour TFT 240x320 pixels
- Batteries: 4 x AA (1. 5V), Typically 24 hours continuous use (screen settings dependent)
- External Power: Micro USB type B, 0.5A
