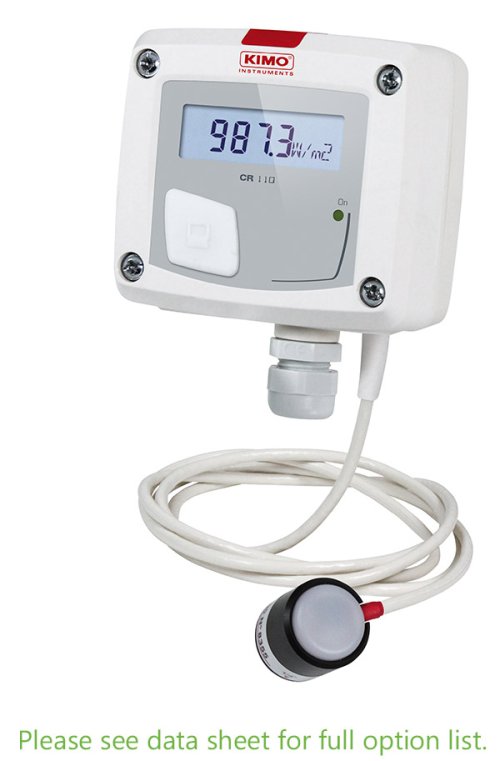

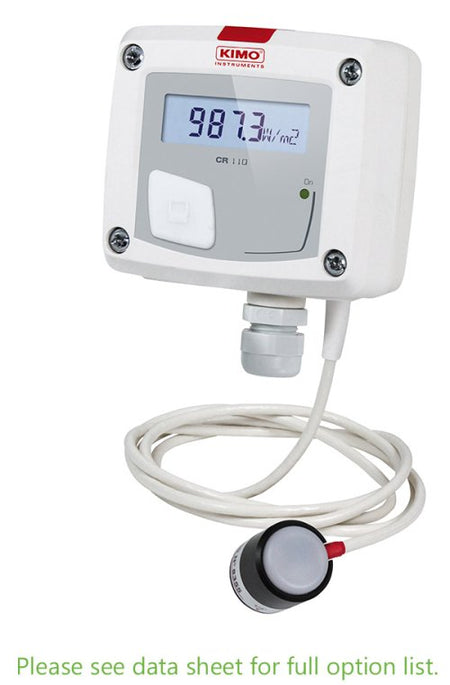

Solar radiation transmitter - CR110
Features:
- Range from 0 to 1500 W/m²
- 0-10 V active output, power supply 24 Vac/Vdc (3-4 wires) or 4-20 mA output, passive loop, power supply from 16 to 30 Vdc (2 wires)
- ABS V0 housing, with or without display
- “¼ turn” system mounting with wall-mount plate
- Housing with simplified mounting system
- 0-10 V active output, power supply 24 Vac/Vdc (3-4 wires) or 4-20 mA output, passive loop, power supply from 16 to 30 Vdc (2 wires)
- ABS V0 housing, with or without display
- “¼ turn” system mounting with wall-mount plate
- Housing with simplified mounting system
Specifications
Measuring range |
From 0 to 1500 W/m² |
Accuracy* |
5% of reading |
Resolution |
1 W/m² |
Type of fluid |
Air and neutral gas |
Working temperature |
From 0 to +50 °C |
Storage temperature |
From -10 to +70 °C |
*All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed for measurements carried out in the same conditions, or carried out with calibration compensation.
Select the option that suits you the most:
CR110 | + | Power supply / Output P= 4-20 mA / PASSIVE A= 0-10 V / ACTIVE |
+ | Display O= with display N= without display |
Material : ABS V0 as per UL94
Protection : IP65
Display : LCD 10 digits. Size : 50 x 17 mm
Height of digits : Values : 10 mm ; Units : 5 mm
Cable gland : For cables Ø 8 mm maximum
Remote probe : cable of 2 m length in PVC
Weight : 140 g
Display : LCD 10 digits. Size : 50 x 17 mm
Height of digits : Values : 10 mm ; Units : 5 mm
Cable gland : For cables Ø 8 mm maximum
Remote probe : cable of 2 m length in PVC
Weight : 140 g
