Solar Power Meter - 860042

ORDER ME IN
Product code: 860042

Enables precise measurement of solar radiation power for the manufacture and installation of solar panels and environmental applications. Results appear in W/m2 or BTU/ft2 on a triple tier backlit display...

Read more
Enables precise measurement of solar radiation power for the manufacture and installation of solar panels and environmental applications.

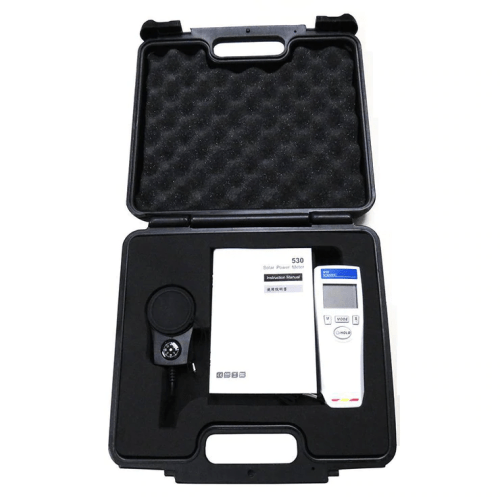

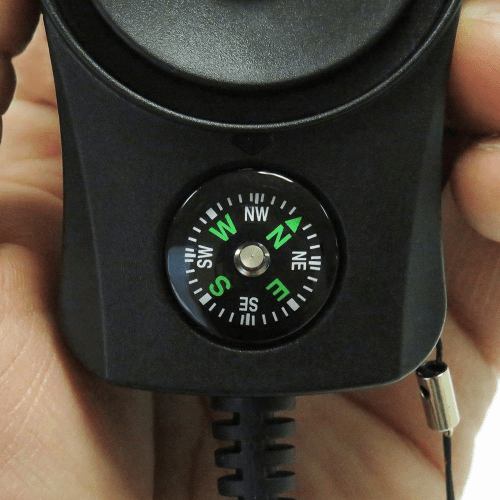

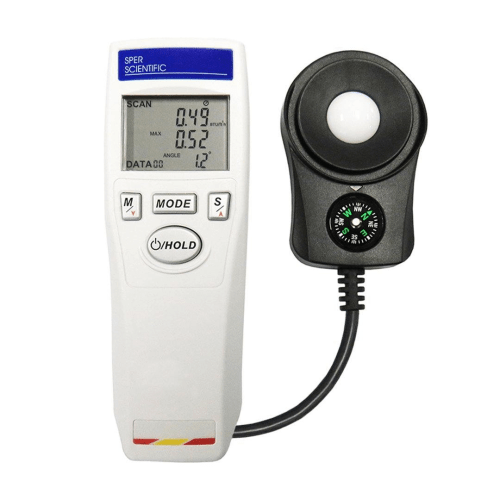

Results appear in W/m2 or BTU/ft2 on a triple tier backlit display which shows a continually updated minimum, maximum or average reading. The display also shows the tilt angle and the probe features a compass for orientation. Manually or automatically records and recalls 20 data points. Comes in a protective foam lined carrying case complete with tripod screw, magnetic mount, 9V battery and instructions.

Specifications

- Range: 0 to 2,000 W/m2 (0~634 BTU/ft2 - h)
- Accuracy (at 23 C, 60% RH): +/- 10W/m2 (+/- 3 BTU/ft2 - h) or +/- 5% whichever is greater
- Resolution: 0.00 to 99.99 W/m2:0.01 W/m2/100.0 to 999.9 W/m2:0.1 W/m2/1,000 to 2,000 W/m2:1 W/m2/0.00 to 99.99 BTU/ft2 - h:0.01 BTU/ft2 - h/100.0 to 634.0 BTU/ft2 - h:0.1 BTU/ft2 - h
- Angular Accuracy: Cosine corrected less than 7% (angle less than 60 degrees)
- Tilt Angle Range: 0 to 90
- Tilt Angle Accuracy (at 23C, 60% RH): +/- 1.2 (less than or equal to 60 degrees), Additional temperature induced error +/- 0.1/C from 23 C
- Sample Time: Approx. 0.4 seconds
- Dimensions: 140 x 49 x 29 mm
