Acclima | See more Data Loggers

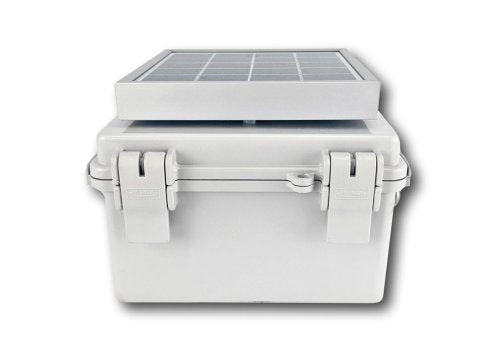

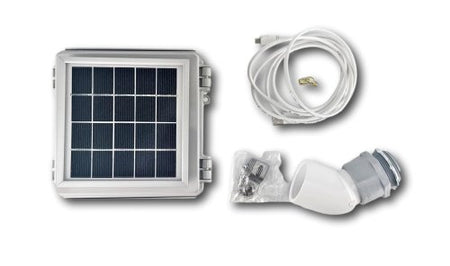

Solar DataSnap Data Logger

DISCONTINUED
Product code: Solarsnap

Unfortunately, the Solarsnap has been discontinued. Check out our other Soil Moisture Meters for more options.

Low cost SDI-12 data logger that records moisture, temperature, bulk EC, and pore water EC from Acclima SDI-12 sensors.

-Connects up to 10 sensors.

-Solar powered for continuous operation in the field.

-Stores, interprets & graphs thousands of data points.

Read more

Features:
- Compatible with any SDI-12 Ver1.3 sensor
- Records Moisture, Temperature, Bulk EC, Pore Water EC from Acclima SDI-12 Sensors
- Connects up to 10 sensors
- Solar Powered for continuous operation in the field
- Stores, interprets & graphs thousands of data point
- SolarSnap connects to your PC and our powerful SnapView software via USB.
When used in conjunction with Acclima's Patented Soil Moisture Sensors, the most accurate and stable sensors in the industry, you are able to capture the following data:
- Soil Moisture
- Soil Temperature
- Soil Conductivity
- Soil Permittivity
Data Storage Space:
A SolarSnap with 10 configured Acclima moisture sensors, reading sensors every 30 minutes can store up to 4 months worth of data. To increase the time span of the logged data, reduce the number of sensors or take readings less often. Using only 5 sensors can store up to 8 months of data.
When the SolarSnaps memory is full it will erase a few of the oldest readings and write the new readings. This means the SolarSnap will not stop logging when its memory is full. But data that was replaced is permanently lost.
Bundled SnapView Software:
Configures Captures and Analyses all your SolarSnap data.
Acclima SnapView software simplifies SolarSnap configuration and synchronisation via USB. It can manage multiple SolarSnap connections and retrieve real-time sensor data from each. SnapView provides options for viewing data in table or graph formats. Data is easily exported for use in other analytical applications. SnapView is compatible with any Windows based PC (XP or newer).

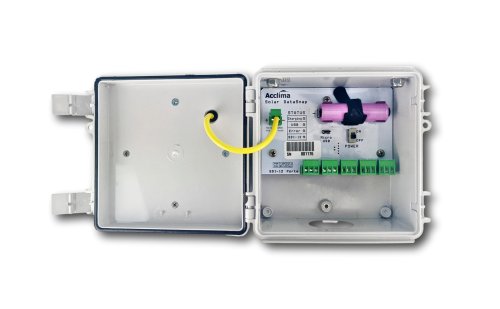

Hardware Features:
- Data logging of the first 5 datapoints of the SDI-12 M! command.
- USB to SDI-12 Bridge
- Supports powering sensors from the USB bus (5V only)
- Supports an optional 12V power adapter
- Short circuit protection
- Acclima SnapView software provided
- Compatible with terminal software applications like HyperTerminal or PuTTy
- Supports 3rd party software development
Data Storage Space:
- Total Memory Capacity = 59392 Sensor Scans
- Each sensor scan may contain up to 5 data points
- The estimated storage capacity of the SolarSnap's memory is dependent on the the sensor count and reading interval.
Note: When the memory is full, the SolarSnap will replace the oldest data with the most recently collected data. This means the SolarSnap will not stop logging when its memory is full, but old data will be permanently lost if not collected within the required time frame (see Estimated Storage Capacity).
