Water Quality Station (Salinity, TDS, Conductivity and Temperature) - IC-SNiP-SAL-SL
The SNiP-SAL is a 'Sensor Node Integrated Package' for LoRaWAN or CAT-M1 communication of real-time salinity, TDS KCl, conductivity, and temperature measurements for continuous water quality monitoring.
The base SNiP-SAL integrates 1x S-NODE and 1x AWQ-C4E Conductivity/Salinity Sensor to a site's unique network, communication and power requirements. The S-NODE can support an added 3x Sensors. The AWQ-C4E sensor has been designed to measure Salinity, TDS, Conductivity and Temperature.

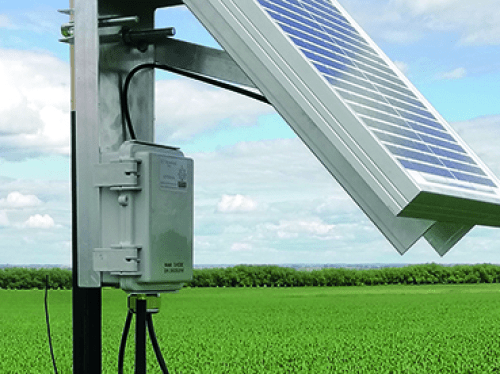

S-NODE
The S-NODE has been designed to support the broad suite of SDI-12 based environmental sensors. The S-NODE can support sensors with higher power requirements; a solar panel can charge either the internal lithium-ion battery or both the node and sensor can be powered by an external 12V system (e.g. battery or mains source). The S-Node's SDI-12 communications can be customised to allow for interfacing with any SDI-12 sensor.
Specifications

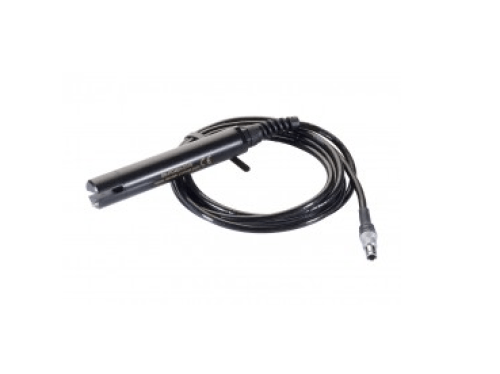

AWQ-C4E Conductivity/Salinity features:
- 4 electrodes (2 graphite, 2 platinum)
- Range: 0 to 200 mS/cm
- Digital sensor: Modbus RS-485, SDI-12
- Robust and Watertight
- Can be used in urban wastewater treatment, industrial effluent treatment, surface water monitoring, sea water, drinking water
AWQ-C4E Conductivity/Salinity specifications:
- Measurement range (c0nductivity): 0 to 200 uS/cm, 0 to 2000 uS/cm, 0 to 20 mS/cm and 0 to 200 mS/cm
- Resolution: 0.01 to 1, depending on range
- Accuracy: +/- 1% of the full range
- Measurement range (salinity): 5-60 g/Kg
- Measurement range (TDS-KCl): 0-133000 ppm
- Response Time: less than 5s
- Temperature Compensation: NTC Thermistor
- Sensor Interface: Modbus RS-485 (standard); SDI-12 (optional)
- Measurement Frequency: 1Hz
- Sensor Power Supply: 5 to 12 volts DC
- Current Draw: Standby: 25 uA/Average RS485 (1 measurement/second): 6.3 mA/Average SDI-12 (1 measurement/second): 9.2 mA/Current pulse: 500 mA
Sensor:
- Operating Temperature: 0 C to +50 C
- Storage Temperature: -10 C to +60 C
- Dimensions: Diameter: 27 mm; Length: 177 mm
- Weight: 300g (sensor and 3 meter cable)
- Material: PVC, DELRIN, stainless steel
- Maximum Pressure: 5 bar
- Connection: 9 armoured connectors, polyurethane jacket, bare-wires or waterproof Fischer connector
- Protection: IP68
