Wave Control | See more Environment Meters | See more EMF Meters

SMP2 Selective - IC-WSN0003

ORDER ME IN
Product code: IC-WSN0003

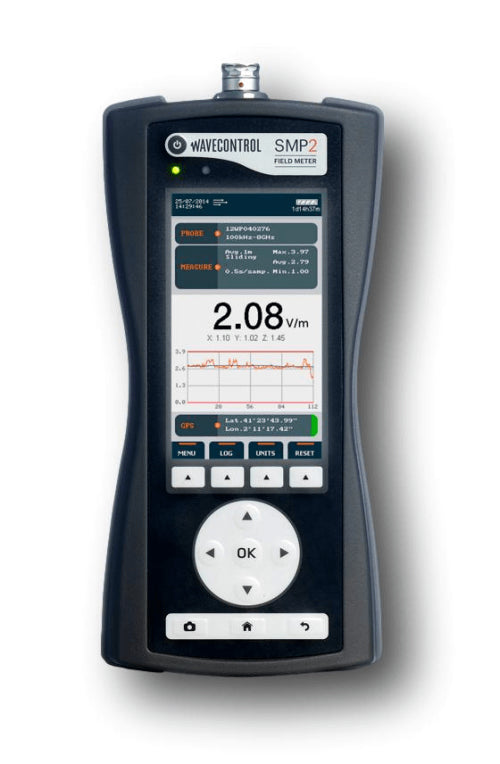

Field strength meter for EMF exposure, provides broadband and spectrum analysis (0 Hz to 400 kHz) with Weighted peak exposure (% of exposure against limit). Includes charger, USB cable and carrying case. Requires at least one probe to use.

Read more

Features:
- Real-time FFT-based spectrum analysis using digital processing.
- Weighted Peak Method (WPM) for automatic and real time comparison with limits.
- Special auto-gain function for peak detection (indispensable for procedures such as welding).
- Display of results in RMS and peak values.
- Function for time domain measurement of a specific frequency.
- Automatic field probe recognition.
- E&H field selection.
- Total field value and value for each component (X, Y, Z).
- Frequency SPAN selection.
- High Pass Filters at 1 Hz, 10 Hz, 25 Hz and 100 Hz.
- Max-hold function.
- Display of maximum, minimum and average values.
- Sliding window function according to standards.
- Spatial average function.
- Adjustable measurement time from 1s to 100 hours.
- Programmable measurement to start at a given time.
- Graphic display of broadband measurement changes over time.
- Adjustable graph display from 1 s to 12 minutes.
- Programmable alarm function.
- USB and fibre optics connection.
- Large storage capacity.
- Screen-shot function for reporting.
- PC software for control and reporting.
- Results can be uploaded automatically to a web-page control centre.
- Available in several languages.

Specifications

- Version: For frequency selective measurements from 0 to 400 kHz using WP400, WP400-3 and WPH-DC
- Field probes: Automatic detection and recognition
- Broadband measurement range: 10 Hz to 60 GHz (may depend on the probe used)
- Spectrum analysis: up to 400 kHz
- Weighted Peak Method: 1 Hz to 400 kHz (Real time WPM for direct comparison with limits)
- Readout values: Total field (instantaneous, max., min. and average), Field components (X, Y, Z)
- E Field units: V/m, kV/m, μW/cm2 , mW/cm2 , W/m2 , %
- H Field units: nT, uT, mT, T, A/m, %, mG, G
- Log time: Configurable (from 0.5 s to 6 min)
- Average modes: Fixed o Sliding, according to international standards
- Average intervals: 10 s, 15 s, 30 s, 1 min, 2 min, 5 min, 6 min, 10 min, 15 min, 30 min
- Schedule measurement: Customized (up to 24 hours)
- Memory capacity: More than 1 million samples
- Data downloading: Mini-USB and Fibre Optics
- Firmware updating: Mini-USB
- Alarm: 2400 Hz audible signal (adjustable threshold)
- Display type: Color transmissive TFT (480 x 272 pixels)
- GPS: (optional)Built-in u-blox 7 (56 independent tracking channels)
- Battery: Internal rechargeable Li-ion
- Autonomy: more than 20 hours (with broadband probes)
- Temperature range: -10 to 50 C
- Size: 100 x 215 x 40 mm
- Weight: 630 g
