Smart Portable Socket and LoRaWAN Sensor
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 24th of July 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

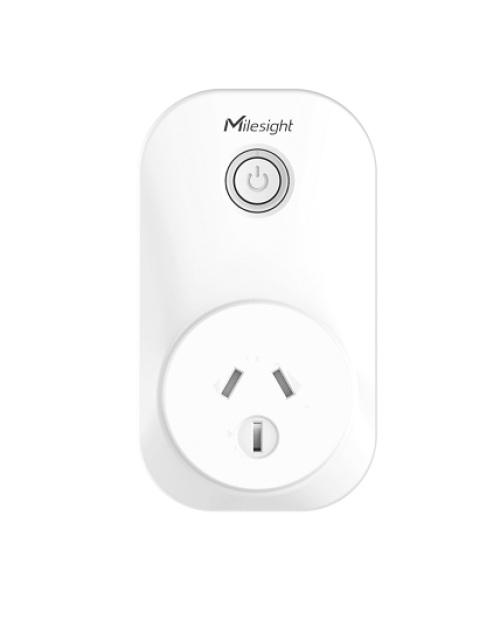

The WS523-915M-10A-AU is a LoRaWAN smart socket that allows you to control and monitor your electrical devices.
- Create schedules to turn the remote appliances on/off automatically or monitor the power consumption of your devices.
- The overload protection prevents connected appliances, safety fuse and the smart socket itself from damage of overcurrent.
- Compatible with industry-standard LoRaWAN gateways with a range of up to 15 km in rural areas and 2 km in urban areas.
Regular price
$159.90 AUD
+ GST
$175.89 AUD Inc. GST
$175.89 AUD Inc. GST
Note: Requires a Gateway to utilise the IoT Cloud software
The WS523-915M-10A-AU is a LoRaWAN smart socket that allows you to control and monitor your electrical devices.
The overload protection prevents connected appliances, safety fuse and the smart socket itself from damage of overcurrent.Thepower consumption measurementand flexible schedule settings would help to save power and lower electric bills.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
WS523-915M-10A-AU Features
- Occupancy or motion detection based on passive infrared and Fresnel Lens
- Easily to install with the convenient size
- Built-in light sensor, combine PIR sensor to achieve triggers
- Ultra-wide-distance wireless transmission up to line of sight of 15 km
- Equipped with NFC for one touch configuration, support card emulation mode
- Support Milesight LoRa D2D protocol to enable ultra-low latency and directly control without gateway
- Function well with standard LoRaWAN gateways and network servers
- Compliant with Milesight IoT Cloud
Specifications
Frequency
|
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923
|
Tx Power
|
16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
|
Sensitivity
|
-137 dBm
|
Work Mode
|
OTAA/ABP Class C
|
Socket Type
|
US/EU/AU/CN, etc.
|
Operating Voltage
|
100 to 250 VAC, 50 to 60 Hz
|
Max Load Capacity
|
10 to 16 A (Optional), 250 VAC
|
"Measurement "
|
Voltage (VAC), Current (A), Power Factor (%), Power Meter (kWh)
|
Configuration
|
NFC
|
Power Control
|
Button or Remote Control
|
Advanced Features
|
Schedule Switch, Button Lock, Overcurrent Protection/Alarm
|
LED Indicator
|
1
|
Button
|
ON/OFF, Reset
|
Material
|
Polycarbonate
|
Color
|
White
|
Operating Temperature
|
-10 to +60 C (14 to +140 F)
|
Relative Humidity
|
10% to 90% (non-condensing)
|
Dimensions
|
110 x 62 x 35 mm (4.33 x 2.44 x 1.38 in)
|
