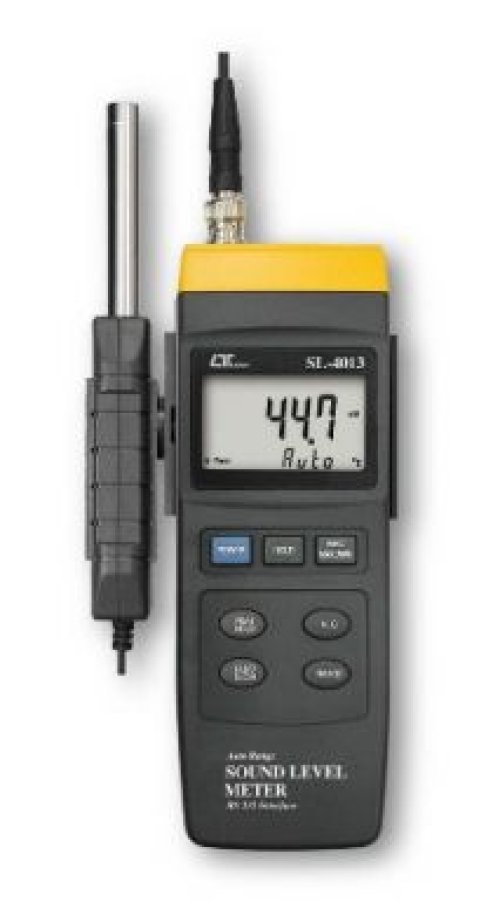

Digital Sound Level Meter with Separate Microphone - SL-4013
Order now and the extra items will likely dispatch before the 28th Sep 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.
- Frequency weighting meets IEC 61672 type 2
- Separate sound probe, easy operation
Bonus Additional 1 Year Instrument Choice Warranty!
$552.42 AUD Inc. GST
Specifications
|
Display |
52 mm x 32 mm LCD (Liquid Crystal Display), 5 digits |
|
Function |
dB (A & C frequency weighting), Time weighting(Fast, Slow), Hold, Memory (max. & min.), Peak hold, AC & RS232 output.
|
|
Measurement Range
|
30 - 130 dB |
|
Resolution |
0.1 dB. |
|
Accuracy (23 +-5 C)
|
Frequency weighting meet IEC 61672 class 2, calibrating input signal on 94 dB ( 31.5 Hz to 8 KHz), then the accuracy of frequency weighting is specified as following: 31.5 Hz: +- 3 dB, 63 Hz: +- 2.5 dB, 125 Hz: +- 2.0 dB
250 Hz: +- 1.9 dB, 500 Hz: +- 1.9 dB, 1 kHz: +- 1.4 dB
2 kHz: +- 2.6 dB, 4 kHz: +- 3.6 dB, 8 kHz: +- 5.6 dB
|
|
Frequency Weighting Network
|
A weighting: The characteristic is simulated as "Human Ear Listing" response. Typical, if making the environmental sound level measurement, always select to A weighting. C weighting: The characteristic is near the "FLAT" response. Typical, it is suitable for checking the noise of machinery (Q.C. check) & knowing the sound pressure level of the tested equipment.
|
|
Calibrator
|
B & K (Bruel & kjaer), multifunction acoustic calibrator, model : 4226.
|
|
Microphone
|
Electric condenser microphone.
|
|
Size of microphone
|
1/2 inch standard size
|
|
Range selector
|
Auto range : 30 to 130 dB. Manual range : 3 range, 30 to 80 dB, 50 to 100 dB, 80 to 130 dB, 50 dB on each step, with over & under range indicating.
|
|
Time Weighting (Fast & Slow)
|
Fast - t= 200 ms, Slow - t = 500 ms, a)"Fast" range is simulated the human ear response time weighting.
b)"Slow" range is easy to get the average values of vibration sound level.
c) The "Fast" & "Slow" time weighting range are designed to IEC 61672 class 2 requirement
|
|
Output Signal
|
a) AC output - AC 0.5 Vrms corresponding to each range step. Output impedance - 600 ohm.
b) RS232 output.
|
|
Output terminal
|
Terminal 1 : RS232 computer interface terminal.
Terminal 2 : AC output terminal.
* Terminal socket size : 3.5 mm dia. phone socket
|
|
Calibration VR
|
Build in external calibration VR, easy to calibrate on 94 dB level by screw driver
|
|
Operating Temp.
|
0 to 50 C (32 to 122 F)
|
|
Operating Humidity
|
Less than 80% RH.
|
|
Power Supply
|
006P DC 9V battery ( Alkaline or heavy duty type ).
|
|
Power Consumption
|
Approx. DC 6mA.
|
|
Dimension
|
Main instrument: 205 x 68 x 29 mm ( 8.07x2.7x1.1 inch ).
Sound probe: 170.5 x 24.5 x 19 mm ( 6.7x1.0x0.7 inch )
|
|
Weight
|
405 g/0.89 LB ( including probe ).
|
|
Standard Accessories
|
Instruction manual ...................................1 PC.
Separate sound probe............................... 1 PC.
Probe holder............................................. 1 PC
|
