Daviteq

SigFox Tilt Sensor (RC2-RC4)

DISCONTINUED
Product code: WSSFC-AG-9-01

For a personalised quote, add to cart. Then in the checkout choose create a quote.

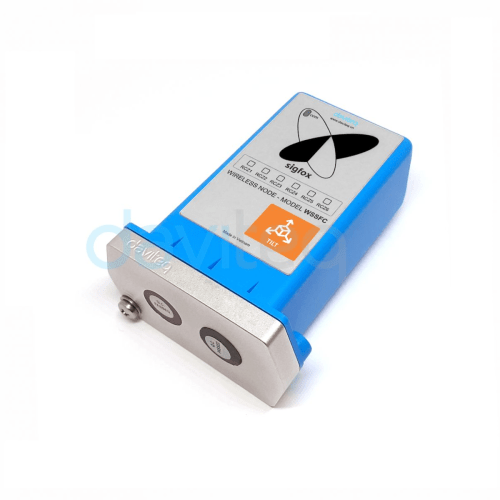

The WSSFC-AG-9-01 is a plug-and-play, SigFox tilt sensor combines an accelerometer and a gyro meter that measures 3 tilt angles (X, Y, Z) of any object such as electrical towers, telecommunications towers, bridges, etc.

-Compatible with RC2-RC4 zones.

-Can run for up to 10 years using 2x AA batteries.

-With IP67 protection.

Read more | Need help? 3 Hour Business Reply

Specifications

Sensor specification:
- Tilt Sensor: Built-in advanced accelerometer and gyro meter to deliver tilt angle measurement of X, Y, Z
- Measurement range: +/- 90 degrees of XYZ
- Repeatability: +/- 0.25 degrees
- Sensor sampling rate: 1Hz max
- Alarm setting: setting the alarm threshold for each angle
SigFox specifications:
- Sigfox zone(s): RC2-RC4
- Antenna: Internal Antenna 2dbi
- Battery: 2x AA Type 1.5VDC, working time up to 10 years (depends on configuration)
- RF Module: complies to CE, FCC, ARIB
- Working temperature: -40 to 60 C (using Energizer Lithium Ultimate AA battery)

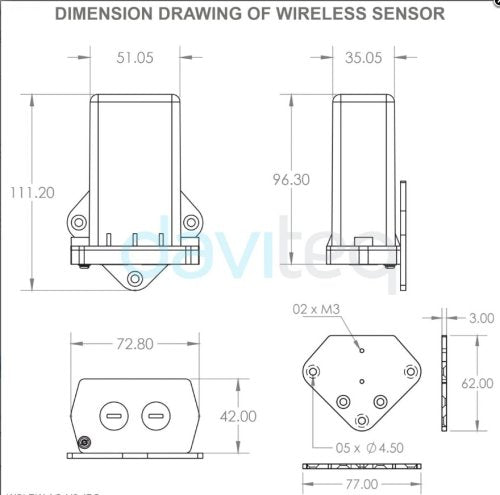

- Dimensions (HxWxD): 97 x 73 x 42
- Net-weight: 250 grams
- Housing: Polycarbonate & POM plastic, IP67
