Sigfox Soil Moisture Sensor (RC1)

DISCONTINUED
Product code: WSSFC-SMT-8-01

For a personalised quote, add to cart. Then in the checkout choose create a quote.

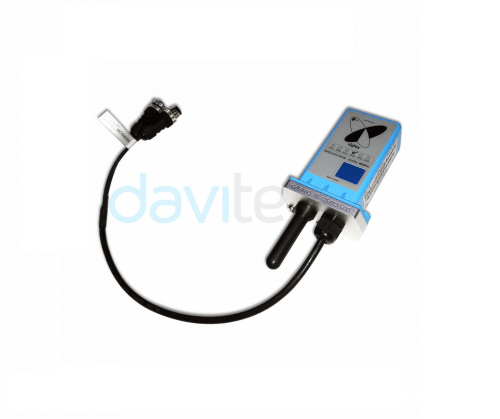

The WSSFC-SMT-8-01 is a Sigfox soil moisture sensor utilising the Frequency Domain measuring technique to deliver high accuracy and stable measurement of soil moisture.

-Measures soil moisture, fertilizer (NPK) and soil erosion.

-Not affected by fertilizer contents and temperature.

-Compatible with RC1 zone.

-With IP67 protection.

Read more | Need help? 3 Hour Business Reply

Specifications

Sensors specifications:
- Moisture, EC & NPK Sensors: Advanced technology - Frequency Domain Reflectometry, Pre-calibrated at factory
- Moisture range / accuracy / resolution: 0 to 100 %, +/- 3.0%, 0.01%
- Temperature range / accuracy / resolution: -30 to 70 C, +/- 0.3 C, 0.1 C
- EC range / accuracy / resolution: 0 to 20 mS/cm, +/- 2.0% span, 0.1 mS/cm
- NPK Measuring range: 0 to 1999 mg/kg
- NPK Measurement accuracy & Resolution: +/- 2 %FS, 1 mg/Kg (mg/L)
- Response Time: less than 1s
- Measurement Volume: Dia. 70mm x Height 70mm
- Wetted materials: 316L SS and thermoplastic
- Sensor Dimensions: 71 x 45 x 16 mm with probes 70mm and signal cable 2m
- Soil Erosion Probe: Dia. 10mm x Length 300mm with signal cable 2m, SS304 material
Sigfox specifications:
- Sigfox zones: RC1
- Antenna: Fixed external Antenna 2.67 dbi
- Battery: 2x AA Type 1.5 VDC, working time up to 10 years (depends on configuration), extendable by external battery box or power supply
- RF Module: complies to CE, FCC, ARIB
- Working temperature: -40 to 60 C (with AA L91 Energizer)
- Dimensions (HxWxD): 106 x 73 x 42 (Wireless part only)
- Net weight: 190 grams (Wireless part only)
- Housing: Aluminum plus Polycarbonate plastic, IP67.
