Sigfox-Ready Thermal mass Gas Flowmeter

Name: Sigfox-Ready Thermal mass Gas Flowmeter
Brand: Daviteq
SKU: WSSFC-TMF128-G-DN20
Availability: OutOfStock

DISCONTINUED

Product code: WSSFC-TMF128-G-DN20

For a personalised quote, add to cart. Then in the checkout choose create a quote.

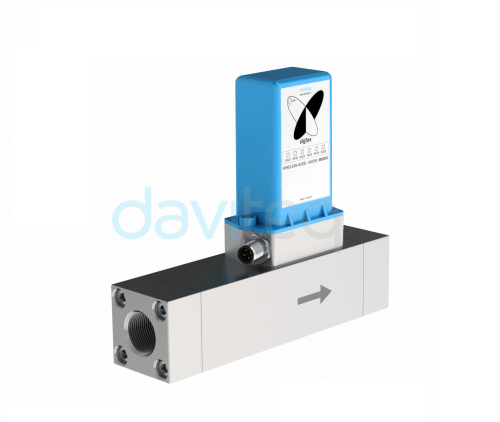

WSSFC-TMF128 is a Sigfox-Ready Thermal mass gas flow meter designed especially for Oxygen, Nitrogen, or Compressed Air flow measurement.

-Delivers accuracy better than 3% of reading plus 0.5% of span.

-Can be configured via Sigfox downlink or RS485 Modbus RTU.

-Compatible with RC1, RC2, and RC4 regions.

Sensor specifications:

- Process connection: DN20 G-female threads (ISO 228-1), with removable flanges for convenient installation/maintenance

- Turndown ratio: 50:1

- Standard Flow Range (max velocity 100m/s): max 120 m3/hr

- Low Flow Range: DN20: max 24 m3/hr

- Accuracy: +/- 3.0% of reading plus 0.5% of Span

- Medium Pressure range: 0 to 10 barg, max allowable pressure 16 barg

- Medium Temperature range: -20 to 85 C, 0 to 90% RH (non-condensation)

- Ambient Temperature range: -40 to 85 C

- Material: 304SS, Polycarbonate

- Communication port: RS485, Modbus RTU for configuration or connect to Master device

Sigfox specifications:

- Sigfox zones: RC1-RC2-RC4

- Antenna: Internal Antenna 2 dbi

- Configuration: via Downlink or RS485 Modbus RTU

- Power supply: 7 to 48VDC

- Connector: M12-Male, 4-pin Coding A

- RF Module: complies to CE, FCC, ARIB

- IP Rating: IP67
