Daviteq

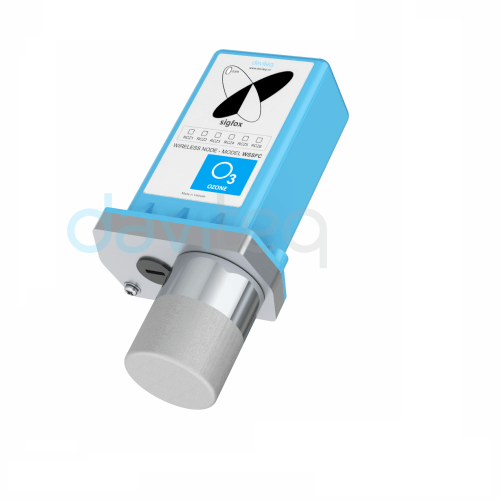

Sigfox OZONE Sensor (RC1-RC2-RC4)

Name: Sigfox OZONE Sensor (RC1-RC2-RC4)
Brand: Daviteq
SKU: WSSFC-G4-O3-5-01
Availability: OutOfStock

DISCONTINUED

Product code: WSSFC-G4-O3-5-01

For a personalised quote, add to cart. Then in the checkout choose create a quote.

The WSSFC-G4-O3-5-01 is a plug-and-play, Sigfox carbon dioxide sensor that delivers highly accurate and stable measurements from 0 to 5 ppm.

-Compatible with RC1-RC2-RC4 zones.

-Can run for up to 5 years using AA batteries.

-With IP67 protection.

Sensor specifications:

- Measurement Range: 0 to 5 ppm of O3

- Detection Limit: 1 ppb

- Resolution: 1 ppb

- Repeatability: less than +/- 2 % of reading

- Response Time: T(90) less than 60 seconds

- Expected Sensor Life: 2 years in normal Air

- Expected Long Term Output Drift in air: less than 2 % signal loss per month

- Operating Temperature Range: -40 to 50 C

- Operating Humidity Range: non-condensing 15 to 90% recommended continuous 0 to 95% RH - intermittent

Sigfox specifications:

- Sigfox zone(s): RC1-RC2-RC4

- Antenna: Internal Antenna 2 dbi

- Configuration: via Downlink or offline USB cable (PC software is supplied at free)

- Battery: 2 x AA Type 1.5VDC

- RF Module: complies to CE, FCC, ARIB

- Working temperature: -40 to 60 C (using Energizer Lithium Ultimate AA battery)

- Dimensions (HxWxD): 140 x 73 x 42

- Net-weight: 250 grams

- Housing: Polycarbonate, IP67

- Mounting: Wall mount bracket
