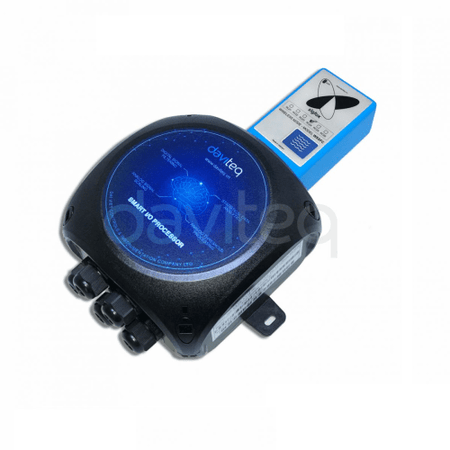

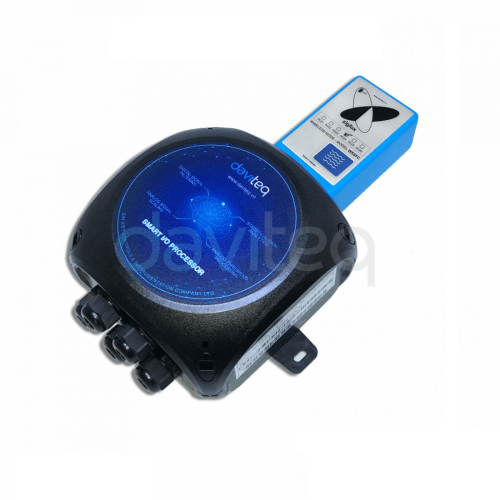

Sigfox Node with Integrated I/O (RC2-RC4)

DISCONTINUED
Product code: WSSFC-IO-9-DC-01

For a personalised quote, add to cart. Then in the checkout choose create a quote.

The WSSFC-IO-9-DC-01 is a Sigfox wireless sensor with integrated IO ports allow it to connect to sensors, meters and equipment directly with built-in data analysis features.

-Multiple I/O like Digital, Analog, Relay, Pulse in one Single Device.

-Compatible with RC2-RC4 zones.

-With Integrated AC power supply.

-With IP67 protection; appropriate for indoor and outdoor applications.

Read more

Specifications

- Sigfox zone(s) select: RC2-RC4
- Antenna: Internal Antenna 2.67 dbi
- RF Module: complies to CE, FCC, ARIB
- Integrated I/O Module: 4AI/DI, 4DI, 4 Relay, 1 Pulse PWM output (refer specification of STHM-MBIO)
- Digital Inputs: Opto-coupler, 4.7 kohms input resisrtance, 5000V rms isolation, Logic 0 (0 to 1VDC), Logic 1 (5 to 24VDC), Functions: logic status 0/1 or Pulse counting (32 bit counter with max 4khz pulse)
- Analog Inputs: Select between 0 to 10VDC input or 0 to 20mA input, 12 bit Resolution, can be configured as Digital input (max 10VDC input)
- Relay Output: Electro-mechanical Relays, SPDT, contact rating 24VDC/2A or 250VAC/5A, LED indicators, Latch control enable
- Pulse Output: Open-collector, opto-isolation, max 10mA and 80VDC, On/off control, Pulser (max 2.5Khz, max 65535 Pulses) or PWM (max 2.5Khz)
- Power supply: 85 to 305VAC, 47 to 440Hz or 9 to 36VDC
- Back-up battery: Lithium Super Capacitor (to alert shortage of power supply)
- Terminal Block: pitch 5.0mm, rating 300VAC, wire size 12-24AWG
- Working temperature: -40 to 85 C
- Dimension and weight (HxWxD): 230 x 130 x 77, less than 1.5 kgs
- Housing: Aluminum plus Polycarbonate plastic, IP67
