Sigfox Node RS485 Modbus Master

DISCONTINUED
Product code: WSSFC-MB485-01

For a personalised quote, add to cart. Then in the checkout choose create a quote.

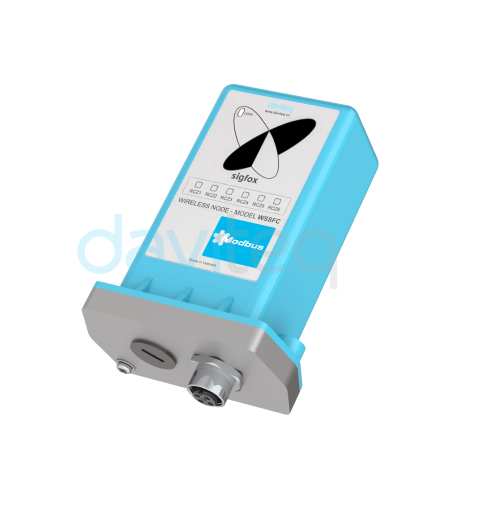

The WSSFC-MB485 is a plug-and-play, Sigfox node with RS485 port support that allows it to read data from water meter, flow meter, power meter, gas meter, or flow computers.

-Compatible with RC1-RC2-RC4 zones.

-With IP67 protection.

Specifications

- Communication: RS485
- Slave Support: 1 Slave
- Baud rate: max 19600
- Electrical connector: M12-female, 4-pin A-coding
- Sigfox zones select: RC1-RC2-RC4
- Antenna: Internal Antenna 2.67 dbi
- Configuration: via offline USB cable (PC software is supplied at free)
- Power Supply: 7-48VDC
- RF Module: complies to CE, FCC, ARIB
- Working temperature: -20 to 60 C / 95%RH, non-condensing
- Dimensions (HxWxD): 110 x 73 x 42
- Net-weight: 200 grams
- Housing: Polycarbonate, IP67
- Mounting: Wall mount bracket
