Sigfox Node Process Pressure Sensor (0-20, RC1)

DISCONTINUED
Product code: WSSFC-PPS-8-20

For a personalised quote, add to cart. Then in the checkout choose create a quote.

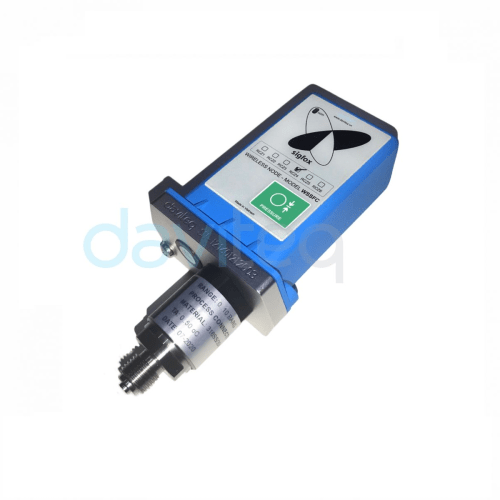

The WSSFC-PPS-8-20 is a plug-and-play, Sigfox node process pressure sensor with advanced PIEZO technology to deliver high accuracy and stable measurement.

-Range: 0 to 20 bar gauge/absolute/sealed gauge.

-Compatible with RC1 zone.

-With IP68 protection.

Read more | Need help? 3 Hour Business Reply

Specifications

Sensor specifications:
- Sensor: Advanced PIEZO technology
- Measurement range: 0 to 20 Bar gauge/Absolute/Sealed Gauge
- Over pressure protection: 1.5 x Span
- Accuracy and Stability: 0.5% of span, less than 0.3% span/year
- Wetted parts: 304SS/316SS
- Measuring Fluids: Any fluid which is workable with materials 304SS/316SS
- Working temperature: -10 to 80 C
- Process connection Standard G1/4 or Others (consult factory)
Sigfox specifications:
- Sigfox zone(s): RC1
- Antenna: Internal Antenna 2dbi
- Battery: 2 x AA Type 1.5VDC, working time up to 10 years (depends on configuration)
- RF Module: complies to CE, FCC, ARIB
- Working temperature: -40 to 60 C (using Energizer Lithium Ultimate AA battery)
- Dimensions (HxWxD): 180 x 50 x 40
- Net-weight: 250 grams
- Housing: Polycarbonate and POM plastic, IP67
