Sigfox NH3 and H2S Sensor (RC2-RC4)

DISCONTINUED
Product code: WSSFC-G4F-NH3-9

For a personalised quote, add to cart. Then in the checkout choose create a quote.

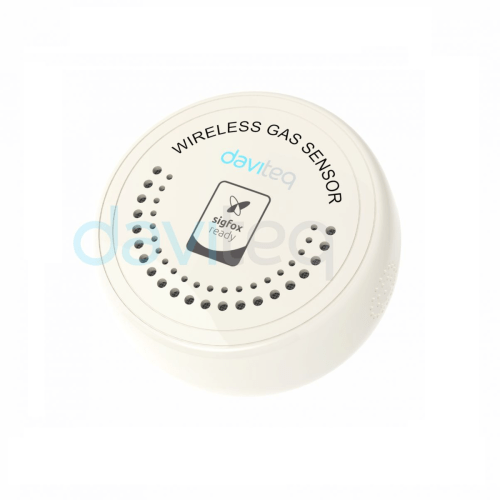

The WSSFC-G4F-NH9-8 is a plug-and-play, Sigfox gas sensor that delivers highly accurate and stable measurements for ammonia and hydrogen sulfide to assess the odor of toilets.

-Special design to get high sensitivity even the sensor is mounted on ceiling up to 2.6m.

-Compatible with RC2-RC4 zones.

-Can run for up to 2-5 years with 15 minutes updates.

-With IP67 protection.

Specifications

Sensor specifications:
- Sensor type: High sensitive electrochemical type sensor, built-in auto-sampling mechanism
- NH3 range: 0 to 100 ppm (or equivalent 0 to 285.7 ppm H2S)
- NH3 tolerance limit: 200 ppm
- Repeatability / Resolution / Stability per month: less than 3% of reading / 0.1 ppm / less than 1% of reading/month
- Zero-point stability: +/- 0.3 ppm
- Ambient pressure: 101.3 Kpa +/- 10%
- Sensor life: 2 years, in clean air
- Working temperature: -10 to 50 C
- Working humidity: 15 to 90% RH
Sigfox specifications:
- Sigfox region supports: RC2-RC4
- Antenna: Internal antenna 2dbi
- Configuration: Via Downlink or USB cable (software on PC provided free of charge)
- Battery: 2 x AA size 1.5VDC, battery not included
- RF module: Complies to CE, FCC, ARIB standards
- Electronics: -40 to 60 C (AA Energizer Lithium Ultimate battery installed)
- Case/protection: grade ABS, indoor use, do not spray water directly on the device
- Dimensions/Weight: Diameter 95mm x Height 40mm / less than 250g
