Sigfox Lidar People Counter (RC2-RC4)

DISCONTINUED
Product code: WSSFC-LPC-9-01

For a personalised quote, add to cart. Then in the checkout choose create a quote.

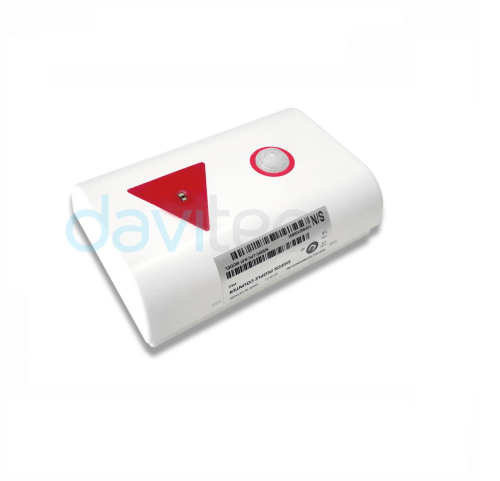

The WSSFC-LPC-9-01 is a plug-and-play, Sigfox Lidar people counter that can count the people walking thru with an accuracy higher than 95%.

-The sensor is not affected by temperature, humidity, RF noise and less affected by ambient light.

-Compatible with RC2-RC4 zone.

-Preinstalled and can be used immediately with minimal setup.

Read more | Need help? 3 Hour Business Reply

Specifications

Sensor specifications:
- Sensor technology: Lidar
- Detection range: max 4m
- Detection cone: 27 degrees
- Working temperature: -40 to 60 C
- Working humidity: 0 to 100% RH, non-condensing
Sigfox specifications:
- Sigfox zone(s): RC2-RC4
- Functions: Sending data in interval or when alarms occur
- Antenna Internal Antenna 2 dbi
- Configuration: via offline USB cable (PC software is supplied at free)
- Power Supply: Battery AA Type 1.5VDC and 7..48VDC (AC adapter not included)
- RF Module: complies to CE, FCC, ARIB
- Working temperature: -40 to 60 C (with Lithium Ultimate AA battery)
- Dimensions (HxWxD): 120 x 80 x 45
- Net-weight: less than 150 grams
- Housing: Self-extinguisher ABS, Dust and vapor protection
- Mounting: Ceiling mount
