Daviteq

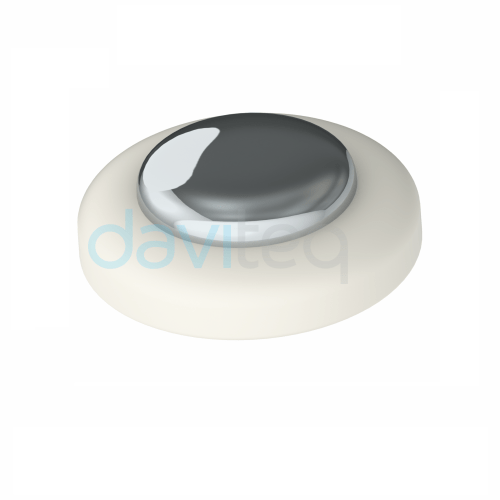

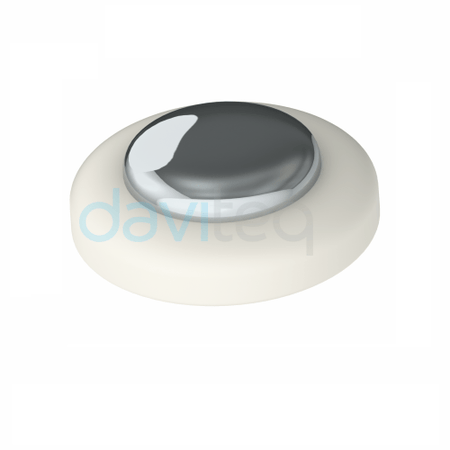

Sigfox Impact Rain Sensor (RC1-RC2-RC4)

DISCONTINUED
Product code: WSSFC-IRS-01

For a personalised quote, add to cart. Then in the checkout choose create a quote.

The WSSFC-IRS-01 is a plug-and-play, Sigfox rain sensor that provides real-time information on rain intensity, duration, and accumulated rainfall.

-Distinguish between rain and hail.

-Maintenance free with IP67 protection.

-Compatible with RC1-RC2-RC4 zones.

Read more | Need help? 3 Hour Business Reply

Sigfox impact rain sensor WSSFC-IRS is a new rain sensor technology. Unlike the traditional methods such as weighing or tipping bucket range gauge, this impact rain sensor has many unique advantages as no maintenance is required, providing real-time information on rain intensity, duration, and accumulated rainfall.
It also can distinguish between rain and hail and provide data for both types of precipitation. The measurement principle is using an impact sensor located beneath the stainless steel cover to count every drop of rain. Raindrops hit the surface at their terminal velocity, which is a function of the raindrop diameter.
Measurement is based on the acoustic detection of each raindrop as it impacts the sensor cover. Heavier drops create a more significant acoustic signal than smaller drops. Ultra-low-power design and smart firmware allow the complete Wireless and Sensor package to run on AA batteries for up to 10 years.

Specifications

Sensor specifications:
- Rain measurement: Intensity, Precipitation and Duration
- Measuring range: 0 to 200 mm/h
- Resolution: 0.1 mm/h, 0.1mm
- Accuracy: within +/- 10% of measurement
- Working atmospheric pressure: 101.3 Kpa +/- 20%
- Working temperature: -40 to 85 C
- Working humidity: up to 100% RH
Sigfox specifications:
- Sigfox zones: select RC1-RC2-RC4
- Antenna: Internal Antenna 2 dbi
- Configuration: via Downlink or offline USB cable (PC software is supplied at free)
- Battery: 2 or 4 AA batteries, Type 1.5V or 3.6V
- Working temperature: -40 to 60 C when using Energizer L91 batteries, -40 to 85 C when using LiSOCl2 batteries
- Accessories: Standard mounting bracket
- Dimensions (DxH): 140 x 45 without bracket
- Total net weight: about 1kg, with bracket and batteries
