Sigfox Air Differential Pressure Sensor (RC2-RC4)

Name: Sigfox Air Differential Pressure Sensor (RC2-RC4)
Brand: Daviteq
SKU: WSSFC-APS-D-125-9
Availability: OutOfStock

DISCONTINUED

Product code: WSSFC-APS-D-125-9

For a personalised quote, add to cart. Then in the checkout choose create a quote.

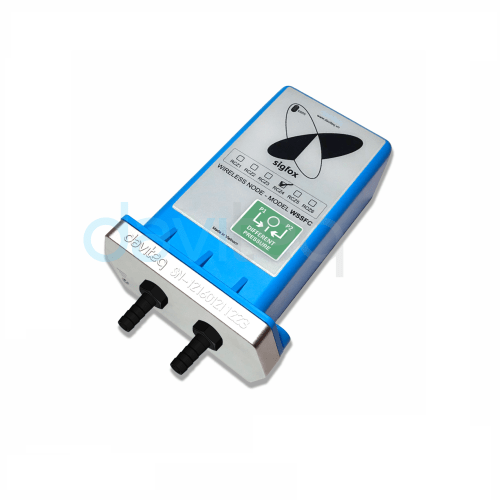

The WSSFC-APS-D-125-8 is a plug-and-play, SigFox air differential pressure sensor, 0-125 PA, for air, O2, and N2.

-Compatible with RC2-RC4 zones.

-Can run for up to 10 years using 2x AA batteries.

-With IP67 protection.

Sensor specifications:

- Sensing Technology: Advanced CMOS technology from Germany

- Measuring range & accuracy: +/-125 Pa 3% reading

- Zero accuracy & repeatability: 0.08 Pa, 0.04 Pa

- Temperature drift & Offset stability: less than 0.5% reading per 10 C, less than 0.05 Pa/year

- Measurable Gases: AIR, O2, N2 (No condensation)

- Working temperature: -20 to 85 C

- Wetted parts: PBT, glass (silicon nitride, silicon oxide), silicon, gold, FR4, silicone as static sealing, epoxy, copper alloy, lead-free solder

- Process connection: Barb fittings for gas tube 6x4mm

SigFox specifications:

- Sigfox zone(s): RC2-RC4

- Antenna: Internal Antenna 2 dbi

- Configuration: via offline USB cable (PC software is supplied at free)

- Battery: 02 x AA Type 1.5VDC, working time up to 10 years (depends on configuration)

- RF Module: complies to CE, FCC, ARIB

- Working temperature: -40 to 60 C (using Energizer Lithium Ultimate AA battery)

- Dimensions (HxWxD): 106 x 73 x 42 mm

- Net-weight: 190 grams

- Housing: Aluminum plus Polycarbonate, IP67

- Mounting: Wall mount bracket
