Sigfox AC Current Sensor (RC2-RC4)

DISCONTINUED
Product code: WSSFC-AC-9-11

For a personalised quote, add to cart. Then in the checkout choose create a quote.

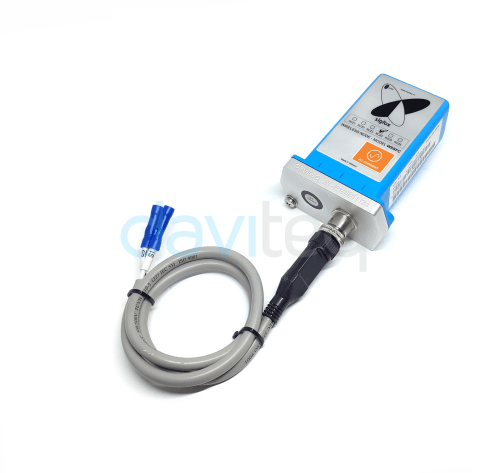

The WSSFC-AC-9-11 is a plug-and-play, Sigfox sensor with 1-channel AC current input 5A is used to measure the AC current load of your motors and machines to measure energy consumption, load, NO-load, etc.

-Compatible with RC2-RC4 zones.

-Can run for up to 10 years using 2x AA batteries.

-With IP67 protection.

Specifications

Sensor specification:
- Measuring range: 0..5A AC
- Accuracy: 1.0%
- Resolution: 10 bit
- Temperature Drift: less than100 ppm
- Electrical connection cable: 0.5m length with wire crimping connectors for SAFETY
SigFox specifications:
- Sigfox zone(s): RC2-RC4
- Antenna: Internal Antenna 2 dbi
- Configuration: via offline USB cable (PC software is supplied at free)
- Battery: 2x AA Type 1.5VDC, working time up to 10 years (depends on configuration)
- RF Module: complies to CE, FCC, ARIB
- Working temperature: -40 to +60 C (using Energizer Lithium Ultimate AA battery)
- Dimensions (HxWxD): 106 x 73 x 42
- Net-weight: 190 grams
- Housing: Aluminum plus Polycarbonate, IP67
- Mounting: Wall mount bracket
