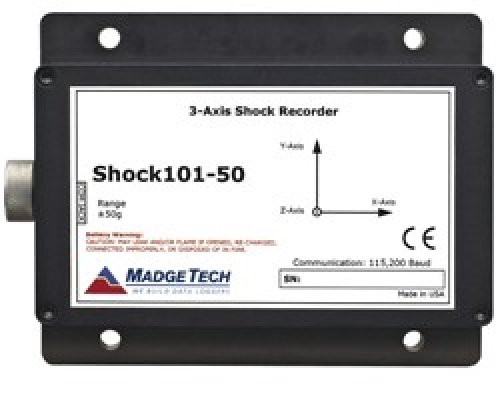

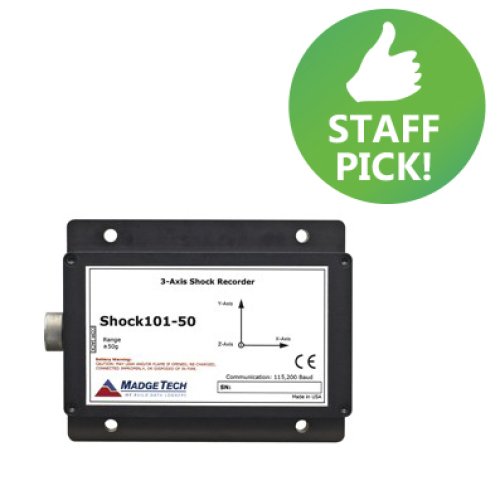

Tri-axial Shock Recorder (50g) - SHOCK101-50

DISCONTINUED
Product code: SHOCK101-50

This logger has been discontinued, please call 1300 737 871 to discuss an alternative.

High Speed, Stand Alone, Battery Powered, Tri-Axial Shock Data Logger (+-50g)

Read more

The Shock101 is a high speed, battery powered, stand alone, tri-axial shock data logger. The data logger continuously samples at 512Hz and at the user-specified reading interval, writes the peak acceleration (g force) to memory.

The Shock101 is specifically designed for documenting dynamic environments such as moving vehicles, trucks, containers, ships, etc.
The device is also valuable in characterizing environments such as production and assembly lines of delicate equipment, IC fabrication, communications and computer components. This is an all-in-one compact, portable, easy to use device that will measure and record data for up to 349,525 measurements per axis. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged.

Data may be displayed for the three axes, as well as a calculated vector sum to provide overall acceleration/shock of the equipment or shipment being monitored. MadgeTech software also provides a summary of statistics for average, minimum and maximum shock values.

SHOCK

Shock Acceleration Range

 50g

Shock Resolution

 0.05

Shock Calibrated Accuracy

 1

GENERAL

Memory

 349,525/axis

Reading Rate

 1.953 millisecond (512Hz)

Baud Rate

 115,200

Channels

 Shock (3 axes)

Battery Life

 7 days

Material

 Anodized aluminum

Dimensions

 3.5" x 4.4" x 1.0" (89mm x 112mm x 26mm)

Operating Environment

 -20~+60C, 0~95%RH non-condensing

Required Interface Package

 IFC200

Approvals

 CE


The following accessories may be required to connect this data logger to your computer
