SensorMine NEXUS IOT
Backorder Now, once ordered your item will dispatch before the 28th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The SensorMine NEXUS IOT device is a secure universal wireless platform designed for robust long life sensing applications that connects to different types of sensors to monitor any type of environment such as urban settings, manufacturing, mining and agriculture.
- Has a built-in capability to monitor temperature, barometric air pressure readings, 3 axis vibration readings and dead reckoning GPS for accurate location in real time.
- Additional parameters such as dust levels, soil moisture, water level and vegetation growth can also be monitored using external sensors.
- Low cost setup with a long battery life and long-range sensors.
Regular price
$999.00 AUD
+ GST
$1,098.90 AUD Inc. GST
$1,098.90 AUD Inc. GST

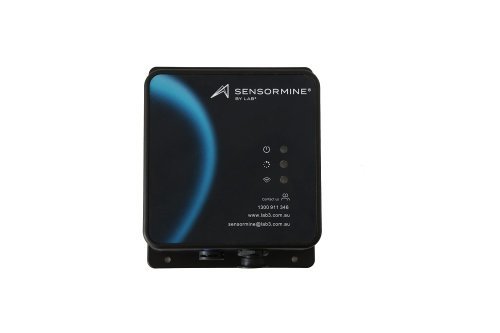

The SensorMine NEXUS IOT device is a secure universal wireless platform designed for robust long life sensing applications. The SensorMine NEXUS has built in capability to provide temperature, barometric air pressure readings, 3 axis vibration readings and dead reckoning GPS for accurate location under extreme conditions. Battery energy is measured and tracked to have a real time measurement of battery usage and to provide the lifetime remaining in the batteries.

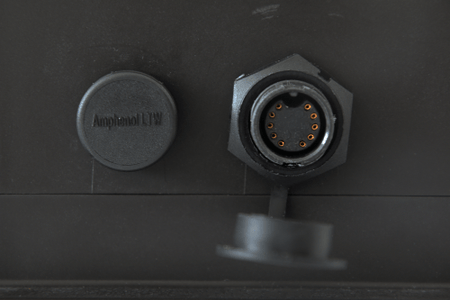

An external accessories connector allows the SensorMine NEXUS to interface with many external sensors such as soil moisture probes, temperature probes, weather stations, water level probes, high sensitivity equipment vibration sensors and air quality sensors. The NEXUS accessories connector supports RS232, RS422, RS485, one-wire, analog and digital Inputs, regulated voltage output and can switch DC loads allowing a multitude of interface possibilities.
These external sensors can be powered from the SensorMine NEXUS internal battery to reduce setup complexity and save time.
The SensorMine NEXUS can communicate over distances up to and beyond 10km via the built in LoRa transceiver. For low range and high data rate applications, the SensorMine NEXUS can communicate via an ultra-secure WiFi connection utilising the latest Microsoft Sphere technology. Bluetooth BLE communications are also supported and can be customised to a given application.
The SensorMine NEXUS supports firmware over the air upgrades.
SensorMine NEXUS IOT Features:
- LoRaWAN long range transceiver
- Secure WiFi via Microsoft Sphere
- Onboard GPS with dead reckoning
- Onboard 3 axis vibration sensor
- Onboard barometric pressure sensor
- Connector for interfacing to external sensors
- High-capacity internal Li-SOCL2 batteries
- Can be powered via the Connector for mains (via adaptor) or solar applications
- Accurate battery life tracking
- No external antennas, all antennas are built in
- Robust weatherproof IP68 housing
Specifications
Accelerometer:
Measurement Range: +/- 2g/ +/- 4g/ +/- 8g/ +/- 16g
Sensitivity: 0.88 mg/digit
Resolution: 12 bits
Frequency: 1.6Hz to 1600Hz
Barometric Pressure:
Measurement Range: 300 to 1200mbar
Sensitivity: 0.016 mbar
Resolution: 24 bits
Temperature:
Measurement Range: -40 to 85 C
Accuracy at 25 C: +/- 1 C
Resolution: 0.01 C
GNSS:
Channels: 24 tracking, 12 acquisition
Sensitivity: -161dBm (tracking)
Positional Accuracy: less than 1.5m (CEP 50)
Altitude: 15,000m max
Velocity: 183m/s
Acceleration: 1.5G max
Internal peripheral:
8GB storage: permanently logs all device activity. Upgradable to 64GB
Real time clock
Battery energy monitor
38Ahr long life wide temperature range internal Li-SOCL2 battery
RS232:
Baud: 1200bps to 1Mbps
Handshake: CTS & RTS
RS422 / RS485:
Baud: 1200bps to 1Mbps
Duplex: Half and full duplex
One wire:
Frequency: 100KHz & 400KHz
Voltages: 1.8V +/- 5%, 3.3V +/- 10%, and 5.0V +5/-10%
Pull ups: Active pull up, supports strong pullup for parasite power
LoRaWAN:
Frequency Band: AU915 & AS923 (915 928MHz)
Tx Power: +14dBm
Rx Sensitivity: -137dBm at DR0 SF10/125kHz
Working modes: Class A, Class B, Class C
Range open field: Up to 13km
Physical:
Operational Temperature Range: -30 to 80 C
Altitude (max): 2000m above sea level
IP rating: IP68
Dimensions: 119mm x 145mm x 56mm
Weight: 525 grams
ESD Protection: +/- 16 kV air and contact discharge
Flammability: Housing: UL94 V-0, Labels: UL94 V-2
Case Material: 30% glass filled Nylon
