Jenco | See more Process Instruments

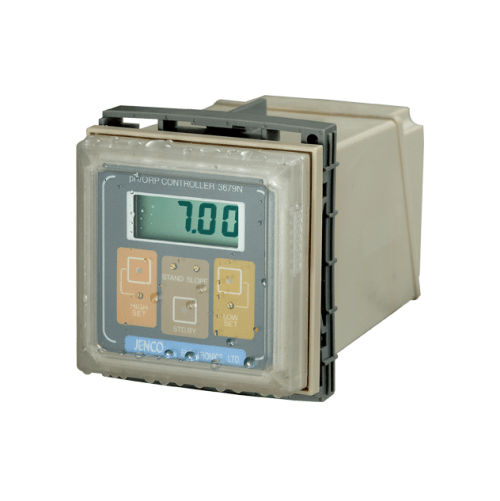

Sealed pH/ORP controller/transmitter,Sealed pH/ORP controller/transmitter, 1/4 DIN panel mount, LCD

ORDER ME IN
Product code: IC-3679N

Order Me In, Once ordered this item will likely dispatch before the 20th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

1/4 DIN panel mount pH/ORP controller/transmitter in a waterproof IP-65 enclosure. Features, LCD display, dual SPDT Hi/Lo relays, manual set point adjust and pH calibration via potentiometers.

Read more | Need help?

$959.60 AUD + GST
 $1,055.56 AUD Inc. GST

1/4 DIN panel mount pH/ORP controller/transmitter in a waterproof IP-65 enclosure. Features, LCD display, dual SPDT Hi/Lo relays, manual set point adjust and pH calibration via potentiometers.

For ORP there is a Zero Adjustment and pH/ORP is selectable via a shorting plug. Output is 4-20 mA current type. Connectors are a spade lug circular connector for pH . All other connections are tinned leads to terminal blocks. Temperature compensation is a Pt-100 ATC or simulation resistor. Power 115/230V AC.
Features:
- Dual function pH & ORP
- Orp zero point calibration
- Isolated 4~20ma output
- Dual on/off relays
- Auto temperature compensation
- Water & corrosion proof case
- Large LCD display

Specifications

- pH Range: 0.00 to 14.00 pH
- pH Resolution: 0.01 pH
- pH Accuracy: +-0.1% +-1 LSD
- ORP Range: -1999 to 1999 mV
- ORP Resolution: 1 mV
- ORP Accuracy: +-0.05% +-1 LSD
- Relays Output (Max): 5amp. at 115VAC, 2.5 amp. at 230 VAC,resistive lo
- Relay Hysteresis pH/ORP: +-0.1 ph / +-10 mV
- Isolated 4-20 mA Output Range: Over imput span
- Accuracy: 0.1 % of span
- Isolation Voltage: 500VDC max
- Load Resistance: 500 ohm max
- Relay Outputs: Over imput span
- Current Output: pH/ORP 0.00 to 14.00 ph / 0 to 1400 mV
- Input Impedance: >= 10exp(13) ohm
- Temperature Compensation: Auto 0 to 100 C
- Temperature Sensor: Pt-100, a=0.00385
- pH Zero Point Control: +- 2.0 pH
- ORP Zero Point Control: +- 100 mV
- Display: 12.7 mm high LCD
- Power: 115 VAC, 230 VAC +- 15%, 50/60 hz
- Weight: 910 gm
- Dimension: 96mm (l) x 96mm (w) x 171mm (d)
- Cutout size: 92 x 92 mm
