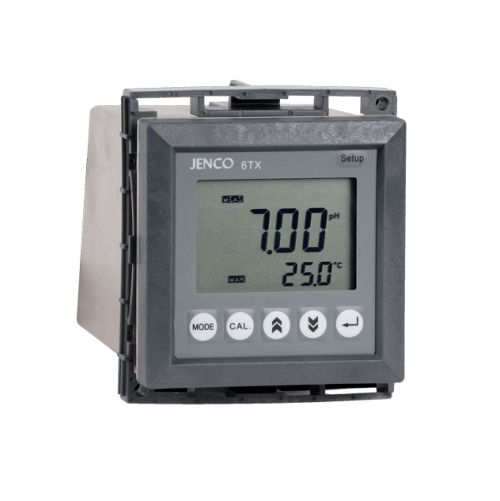

Scalable 12 to 36 VDC loop powered 4-20 mA transmitter, power down flash memory, 1/4 DIN IP-65 case.
ORDER ME IN
Order Me In, Once ordered this item will likely dispatch before the 20th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
Water/dust resistant, scalable 12 to 36 VDC loop powered 4-20 mA transmitter with LCD display, automatic buffer recognition and isolated and reversible 4-20 mA current output for pH or ORP.
Regular price
$1,029.90 AUD
+ GST
$1,132.89 AUD Inc. GST
$1,132.89 AUD Inc. GST
Features:
- Clear LCD displays pH or mV, simultaneously with temperature.
- Automatic buffer recognition of US and NIST buffer sets. Calibration
- data is stored in memory and is ready for use on power up.
- Isolated and reversible 4-20 mA current output for pH or ORP allows It to be used as a proportional output.
- Auto or Manual Temperature Compensation.
- IP65
Specifications
- pH Range: -2.00 to 16.00 pH
- pH Resolution: 0.01 pH
- pH Accuracy: +- 0.01 pH; +- 1 digit
- ORP Range: -1000 to 1000 mV
- ORP Resolution: 1 mV
- ORP Accuracy: +- 1 mv
- Temperature Range: -10.0 to 120.0 C
- Temperature Resolution: 0.1 C
- Temperature Accuracy: +- 0.3 C
- pH buffer recognition: US(4.01,7.00,10.01) or NIST(4.00,6.86,9.18) user selectable
- pH Electrode Offset Recognition: +- 90 mV
- pH electrode Slope Recognition: +- 30%
- Temperature Compensation Auto: -10.0 to 120.0 C (Thermistor,10K ohm /Resistor,Balco 3K ohm /PT-1000 /PT-100) or manual
- Input Impedance: >1013 ohms
- Input Select: User selectable pH or ORP
- Current Output Range: 4 to 20 mA(isolated),programmable span
- Power: 12 to 36 V DC
- Ambient Temperature Range: From 0 to 50 C
- Weight: 600 grams
- Case: IP 65, 1/4 DIN case, 148 mm depth
