Field Piece | See more Clampmeters & Digital Multimeters

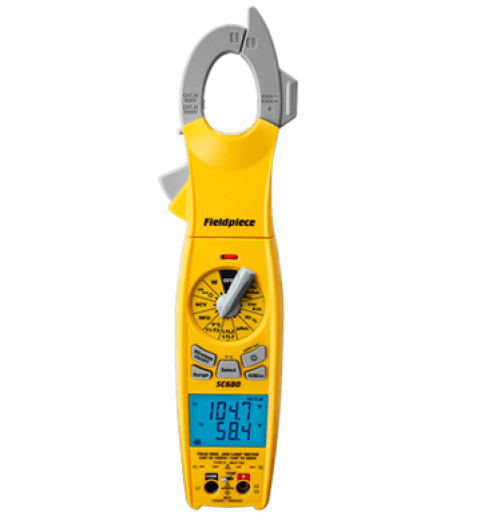

SC680INT : Trms AC/DC Amp Clamp Meter with Power Function

ORDER ME IN
Product code: SC680INT

Order Me In, Once ordered this item will likely dispatch before the 27th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

Wireless clamp meter with Power function designed to work with Fieldpiece's Job Link system for HVAC-R measurements.

-Feature AC/DC clamp.

-With Low Pass Filter for VFD systems.

-Includes Molex test leads for small circuitry.

Read more

$679.90 AUD + GST
 $747.89 AUD Inc. GST
Whether youre working on small circuitry in mini-splits or on large commercial units, the new SC680 is packed with everything you need to install, service or troubleshoot any HVAC-R system.
Fieldpiece Top-of-the-Line HVAC-R Meters - not only communicate with Job Link, but you can also measure power consumption (kW) to determine system efficiency.
Features:
- Verify 3-phase rotation with just two leads.
- Take more accurate VAC and AAC readings with True RMS.
- Filter out noise to get true voltage and frequency with low pass filter.
- Measures Power (kW) for system efficiency
- Has True RMS and Low Pass Filter (LPF) to obtain accurate VFD readings
- Indicates 3-phase rotation with two leads
- Measures start/run capacitors
- Molex tips reach into power connectors
- Magnet for mounting meter during use
- Safety rated CAT IV-600V/CAT III-1000V

Specifications

- Measurement range: up to 600 Amps AC & DC
- Display: 10000 count dual display
- Backlight: 5 minute duration with auto-off, blue color
- Overrange: OL or -OL is displayed
- Measurement rate: 3.3 times per second, nominal Zero: Automatic
- Operating environment: 32F to 122F (0C to 50C) at <70%RH
- Storage temperature: -4F to 140F (-20C to 60C), 0 to 80%RH (with battery removed)
- Accuracy: Stated accuracy @ 73F9F (23C5C), <75%RH
- Temperature coefficient: 0.1 x (specified accuracy) per C [0C to 19C (32F to 66F), 28C to 50 C (82F to 122F)]
- APO (Auto Power Off): Approx. 30 minutes
- Power: Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
- Battery life: 100 hours typical alkaline (No wireless, no backlight)
- Low battery indication: Battery icon blinks and "batt" is displayed when the battery voltage drops below the operating level
- Dimensions: 247mm(H) x 79mm(W) x 48mm(D)
- Weight: Approx. 345g including battery
- Altitude: Up to 6562 ft (2000m)
- Overload protection: 1000VDC or 750VAC rms unless otherwise stated
- Test leads: Use UL listed test leads that comply to UL61010-031 rated CATIV 600V, CATIII 1000V or above. Included test leads are gold-plated and have removable safety caps.
