Field Piece | See more Clampmeters & Digital Multimeters

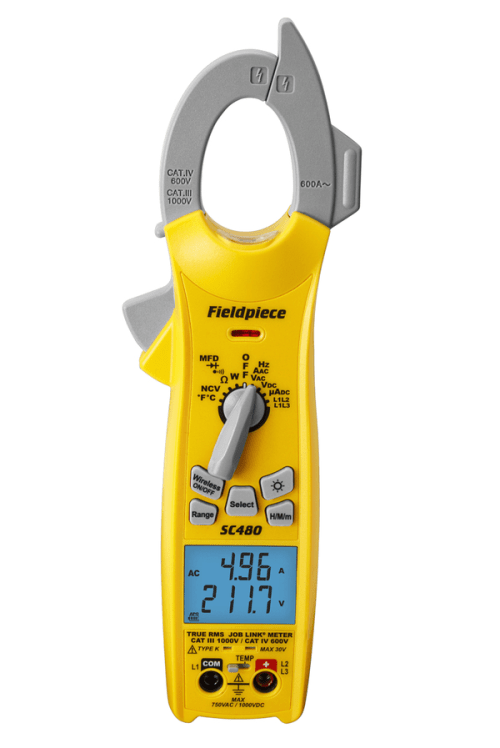

SC480INT Trms Power Clamp Meter

ORDER ME IN
Product code: SC480INT

Order Me In, Once ordered this item will likely dispatch before the 27th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

TRMS CAT1V clamp meter with power [kw] range for Electricians & HVAC-R service.

-Verify 3-phase rotation with just two leads.

-Takes more accurate VAC and AAC readings with True RMS.

-Communicates with Fieldpiece's Job Link system.

Read more

$589.90 AUD + GST
 $648.89 AUD Inc. GST
Test HVACR electrical equipment using phase rotation, True RMS, and Inrush features. Plus connect directly with the Job Link System app to document electrical measurements.
Features:
- Electrical Testing for HVACR: True RMS readings through the clamp or leads. Inrush current mode to capture starting amps.
- Test 3-Phase Power with Only Two Leads: With an alligator test lead (included) connected to L1, you can determine phase rotation with one
- Wireless direct to Job Link System for electrical documentation
- Low Pass Filter for VFD systems
- Molex test leads for small circuitry
- Safety rated CAT IV 600V/CAT III 1000V

Specifications

- Display: 10000 count dual display
- Backlight: 5 minute duration with auto-off, blue color
- Overrange: OL or -OL is displayed
- Measurement rate: 3.3 times per second, nominal
- Zero: Automatic
- Operating environment: 32F to 122F (0C to 50C) at <70%RH
- Storage temperature: -4F to 140F (-20C to 60C), 0 to 80%RH (with battery removed)
- Accuracy: Stated accuracy @ 73F9F (23C5C), <75%RH
- Temperature coefficient: 0.1 x (specified accuracy) per C [0C to 19C (32F to 66F), 28C to 50 C (82F to 122F)]
- APO (Auto Power Off): Approx. 30 minutes
- Power: Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
- Battery life: 100 hours typical alkaline (No wireless, no backlight)
- Low battery indication: Battery icon blinks and batt is displayed when the battery voltage drops below the operating level
- Dimensions: 247mm(H) x 79mm(W) x 48mm(D)
- Weight: Approx. 345g including battery
- Altitude: Up to 6562 ft (2000m)
- Overload protection: 1000VDC or 750VAC rms unless otherwise stated
- Test leads: Use UL listed test leads that comply to UL61010-031 rated CATIV 600V, CATIII 1000V or above

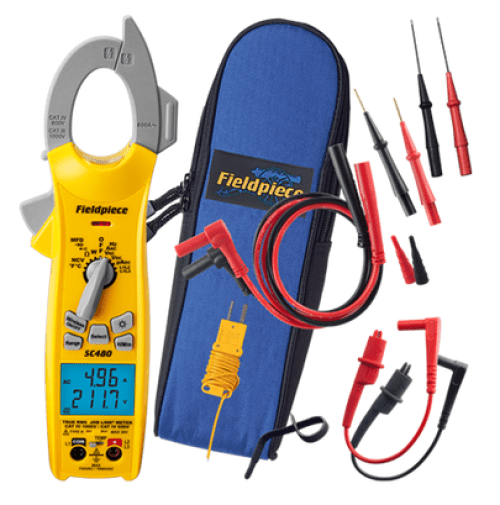

- Included test leads are gold-plated and have removable safety caps
