Si-RM350 Digital Refrigerant Manifold Kit 1
Order Me In, once ordered this item will likely dispatch before the 20th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

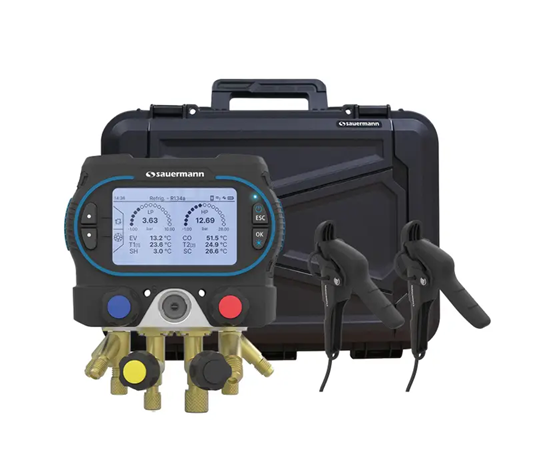

Si-RM450 digital refrigerant manifold kit 1. Includes 1x Si-RM450 4-way manifold (4 ports) measuring range from -1 to 60 bar (-14 to 870 psi), 2x Si-RT2 wired temperature clamps for 6 to 42 mm (0.2 to 1.7 ’’) diameter pipes with NTC sensor and 2 m (6 ft) cable, measuring range from -50 to 120 °C (-58 to 248 °F). Supplied in hard plastic case with batteries (4xAA) and adjusting certificate.
$867.90 AUD Inc. GST
The Sauermann Si-RM350 MANIFOLD KIT 1 (28162) Kit is built around the Si-RM350 manifold and the Si-RT2 temperature clamps. Supplied in hard plastic case with batteries (4xAA) and adjusting certificate.
Si-RM350 manifold can be used to commission and service all types of refrigerant-based installations: heat pumps, air conditioning, refrigeration and reversible systems, from domestic systems to complex industrial machines.
Very easy to operate, this equipment features the latest technologies for fast, comprehensive system diagnostics. Its smart digital assistant guides the operator in every situation to help him achieve his objectives in the best possible way.
The kit includes two Si-RT2 wired temperature clamp probes that provide accurate temperature measurement to enable the calculation of superheat and subcooling values in air conditioning, refrigeration and heat pump installations. The Si-RT2 allows all types of refrigerant-based installations to be serviced quickly, thanks to the excellent responsiveness of its NTC sensor.
Si-RM350 features
- A1 / A2L / A2 / A3 refrigerants compatible
- Safe and rugged for long data logging
- User-friendly troubleshooting with diagnostics
- Durable anti-reflective glass screen
- High-speed NTC temperature sensors
- New smart assistant app: Sauermann Pilot
Specifications
- Units: PSI, kPa, bar, MPa
- Pressure Measuring Range (bar): -1.00 bar ... 60.00 bar
- Pressure Measuring Range (PSI): -14.00 PSI ... 870.00 PSI
- Displays: Graphical display
- IP Protection: IP 54
- Battery life: 300 hours
- Standards: 2015/863 EU (RoHS 3); 2012/19/EU WEEE; 2014/53/EU RED
- Wireless connection: Yes
- Power supply: 4x LR6 or AA 1.5 V batteries. Alternative power supply: USB-C
- Pressure connectors: Si-RM350: 3x 1/4 MFL male
- Temperature connectors: 2x wired jack (NTC)
- Port: USB-C
- Refrigerant database: R11, R113, R114, R115, R1150, R116, R12, R123, R124, R125, R1270, R13, R134a, R13b1, R14, R141b, R142b, R143a, R152a, R161, R170, R218, R22, R227, R23, R236ea, R236fa, R245ca, R245fa, R290, R32, R600, R600a, R601, R601a, R718, R744, R744a, R50, R41, R1233zd(E), R1234yf, R1234zeE, R1234zeZ, R401A, R401B, R401C, R402A, R402B, R403A, R403B, R404A, R405A, R406A, R407A, R407B, R407C, R407D, R407E, R407F, R407H, R408A, R409A, R409B, R410A, R410B, R411A, R411B, R412A, R413A, R414A, R414B, R416A, R417A, R417B, R417C, R418A, R419A, R419B, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R422E, R423A, R424A, R425A, R426A, R427A, R428A, R434A, R437A, R438A, R439A, R440A, R441A, R442A, R443A, R444A, R444B, R445A, R446A, R447A, R448A, R449A, R450A, R452A, R452B, R453A, R454A, R454B, R454C, R455A, R456A, R458A, R466A, R469A, R500, R501, R502, R503, R504, R507A, R508A, R508B, R509A, R511A, R513A

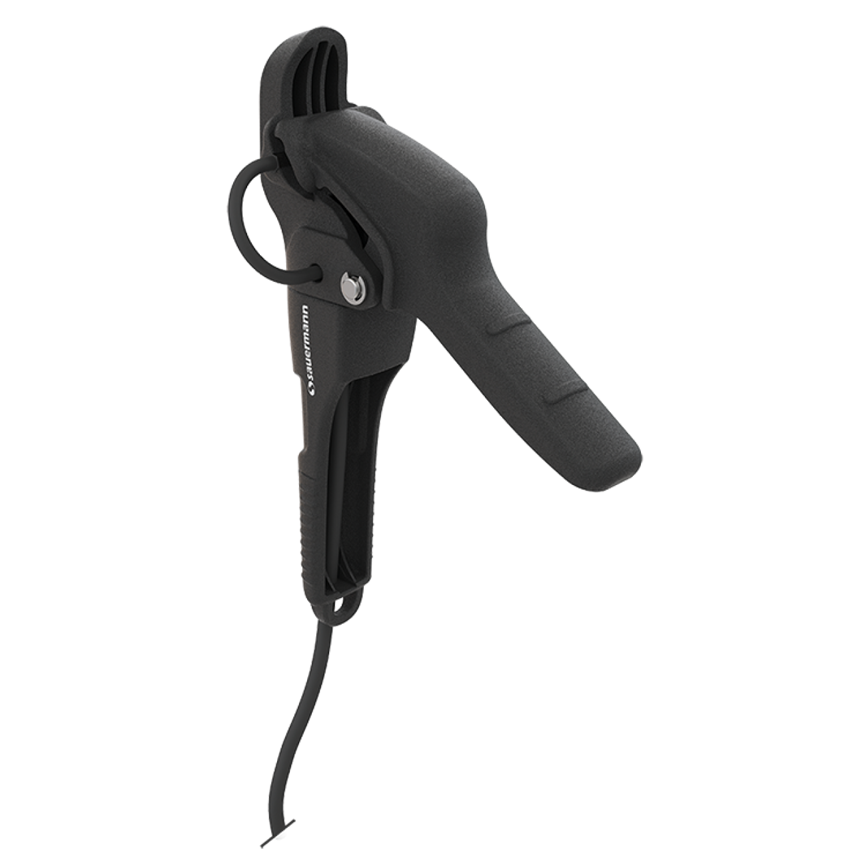

Si-RT2 features
- Innovative “Parrot” shape to handle 6 to 42 mm (0.2’’ to 1.7’’) pipes
- High-speed NTC temperature sensor with high accuracy
- Wide measurement range: -50 to 120 °C (-58 to 248 °F)
Si-RT2 specifications
- Measurement range: -50.00 °C ... 120.00 °C (-58.00 °F ... 248.00 °F)
- Dimensions (LxWxH): 142.2 x 58.8 x 95 mm
