Solar Radiation Sensor (Silicon Pyranometer) - S-LIB-M003
Order now and the extra items will likely dispatch before the 21st Sep 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.
$636.90 AUD Inc. GST
Note: Light sensor bracket (M-LBA) and light sensor level (M-LLA) recommended

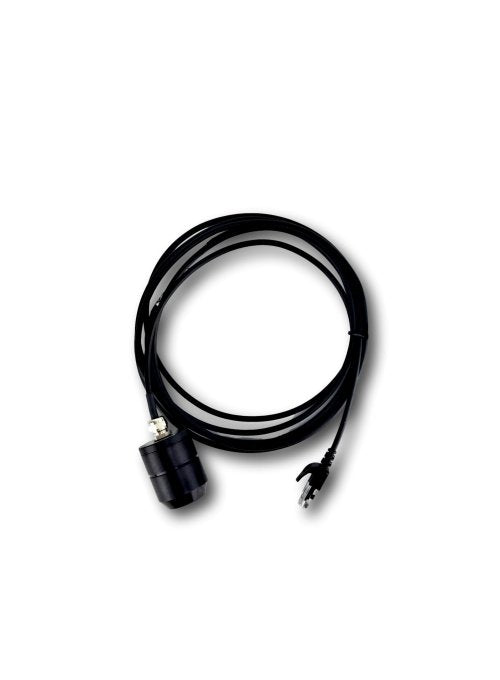

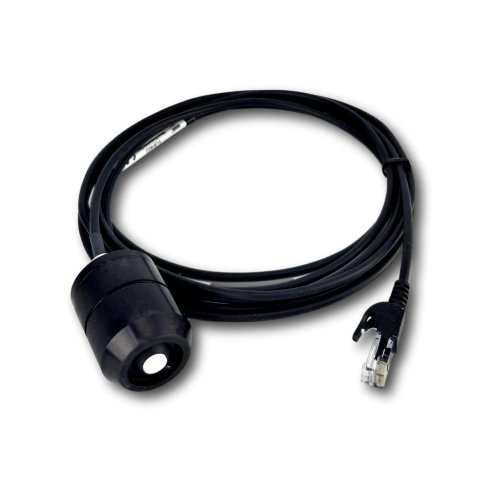

The Solar Radiation Smart Sensor is a light sensor (silicon pyranometer) with a measurement range of 0 to 1280 W/m2 over a spectral range of 300 to 1100 nm. This sensor reports the average light intensity over a user-set set logging interval from a minimum of 1 second. Although the azimuth error is only 2% error at 45 from vertical, a light sensor bracket and light sensor level are recommended.
Measurement parameters: average over logging interval, user-defined sampling interval from 1 second.
Note: Light sensor bracket (M-LBA) and light sensor level (M-LLA) recommended
Specifications
- Measurement range: 0 to 1280 W/m2
- Operating Temperature Range: -40 to 75C (-40 to 167F)
- Accuracy: 10 W/m2 or 5%, whichever is greater in sunlight. Additional temperature induced error 0.38 W/m2 /C from 25C (0.21 W/m2/F from 77F)
- Resolution: 1.25 W/m2
- Drift: 2% per year
- Spectral Range: 300 to 1100 nm
- Cosine Response Error: 5%, 0 to 70; 10%, 70 to 80 from vertical
- Azimuth Error: 2% error at 45 from vertical, 360 rotation
- Calibration: Factory recalibration available

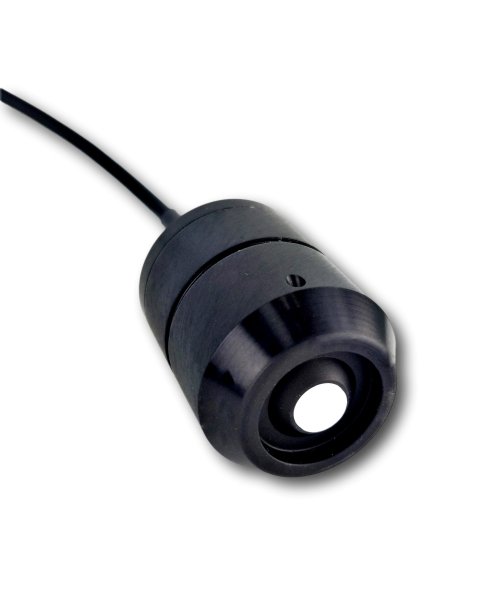

- Housing: anodized aluminum housing with acrylic diffuser and o-ring seal
- Dimensions: 4.1 cm high x 3.2 cm diameter (1 5/8 in. x 1 1/4 in.)
- Approximate Weight: 120 g (4 oz)

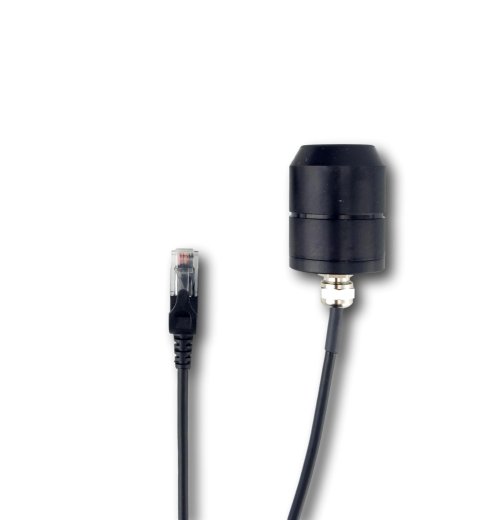

- Cable Length: 3 m (9.8 ft)
