Rugby 680 with Rod Eye 160 Digital Receiver - ICLG6006010
Order Me In, Once ordered this item will likely dispatch before the 07th of December 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
$3,740.00 AUD Inc. GST

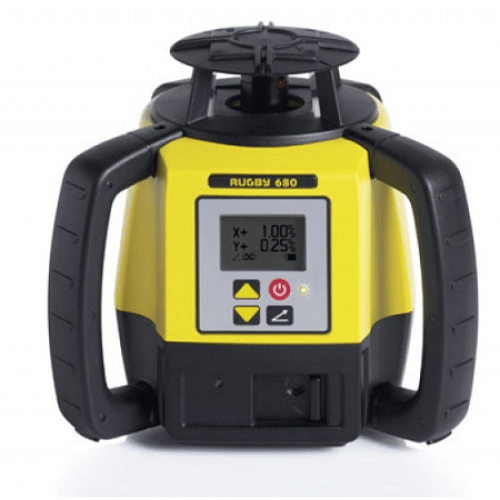

Leica Rugby 680 rotating laser - Slopes done easy
- A great general construction laser with digital grade capability- Dial-in grade in single or dual axis, easy and fast at the touch of a button
- The unique Smart Slope function continuously monitors time and temperature changes to ensure accurate performance over the course of the day
Specifications
| Technical data | Leica Rugby 670 | Leica Rugby 680 |
| Dimensions | 212 239 192 mm | |
| Weight | 2.56 kg / 5.6 lbs | 2.56 kg / 5.6 lbs |
| Functionality | Self-levelling horizontal, dial-in grade in single axis |
Self-levelling horizontal, dial-in grade in dual axis |
| Product type | Semi-auto grade | Semi-auto grade |
| Laser class | Class 2 | |
| Laser type | 635 nm (visible) | |
| Plumb up | - | - |
| Measured at 20C (horizontal / vertical) |
1.5 mm at 30 m (1/16" at 100 ft) | |
| Grade range | 8% SG | 8% DG |
| Smart Slope | Yes | Yes |
| Rotation RPS | 10 | 10 |
| Scanning degrees | - | - |
| Scan90 | - | - |
| Beam down | - | - |
| Sleep mode | - | - |
| Range (diameter) Basic | 600 m (2.000 ft) | 600 m (2.000 ft) |
| Range (diameter) RE140/160 | 800 m (2.600 ft) | 800 m (2.600 ft) |
| RF remote control (diameter) | - | - |
| Li-Ion batt. / hours operation | 40+ | 40+ |
| Alkaline batt. / hours operation | 60+ | 60+ |
| Working temperature range | 10 to +50 C (14 to +122 F) |
20 to +50 C (4 to +122 F) |
| Storage temperature range | 40 to +70 C (40 to +158 F) |
40 to +70 C (40 to +158 F) |
| Seal (both excluding and including battery pack) |
IP67 | IP67 |
| Warranty | 3 years no cost (see PROTECT by Leica Geosystems policy for life time coverage) | |
