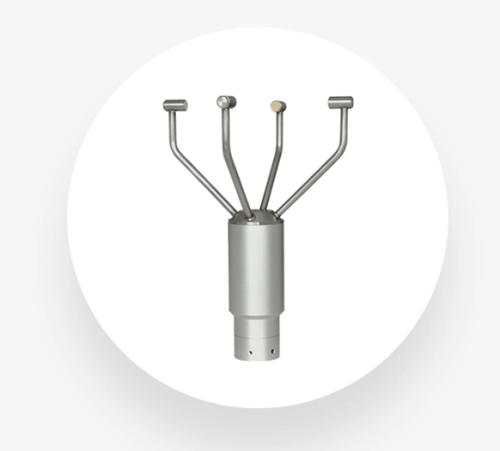

RK120-08 Ultrasonic Wind Speed And Direction Sensor (RS485)

ORDER ME IN
Product code: IC-RK120-08-C-C

Order Me In, once ordered this item will likely dispatch before the 31st of July 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The RK120-08 is an ultrasonic wind speed and wind direction sensor designed to be mounted on remote places or extreme environments where Wifi connection is unreliable.

-Made me no moving parts and maintenance free.

-With RS485 output.

Read more | Need help? 3 Hour Business Reply

$4,659.10 AUD + GST
 $5,125.01 AUD Inc. GST
Features:
- Low starting threshold
- Overall carbon material
- Strong corrosion resistant ability
- Light structure
- RS485 output
- Easy installation
Specifications
Wind Speed:
- Range: 0-60 m/s
- Resolution: 0.01m/s
- Accuracy (<=10m/s) +/- 0.2m/s;
- Accuracy (>10m/s) less than +/- 2% the current value
Wind Direction:
- Range: 0-359
- Resolution: 1
- Accuracy: +/- 3
Technical:
- Power Supply: 12-24VDC(Heating must be 24VDC)
- Power consumption: <0.2W (Heating not activated); <48W (Heating activated)
- Output Signal: RS232/RS485(Modbus/NMEA-0183)
- Wind speed unit: m/s, knots, mph, kph, ft/min
- Ultrasonic output frequency: 1Hz (default); 10Hz (optional)
- Operating Temperature: -50 to 70 C
- Ingress Protection: IP66
- Heating power: 40W max.
- Dimension / Weight (unpacked): 228 x 286mm / 1.13kg
- Main material: Stainless steel and aluminum alloy
