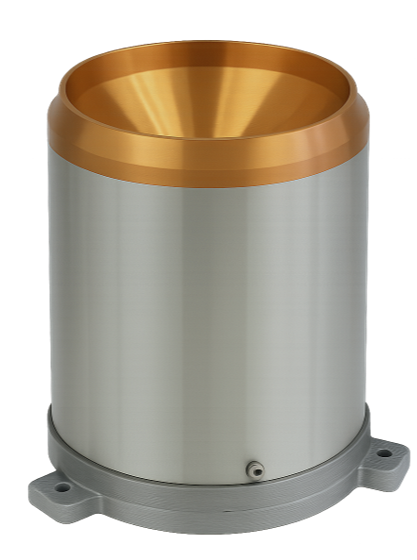

RIMCO-7499-STD Tipping Bucket Rain Gauge (0.2mm)
Order Me In, Once ordered this item will likely dispatch before the 19th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
The RIMCO RIM-7499 range of siphon-controlled tipping bucket rain gauges are WMO compliant instruments designed and constructed for long-term operation with minimal maintenance under all climatic conditions. All materials are...
$1,304.88 AUD Inc. GST
The RIMCO RIM-7499 range of siphon-controlled tipping bucket rain gauges are WMO compliant instruments designed and constructed for long-term operation with minimal maintenance under all climatic conditions. All materials are corrosion resistant.
This is the standard model that comes with a lower specification funnel and includes standard calibration, accurate to within ±3% up to rainfall rates of 250mm/hr. The standard model is an ideal low-cost option for general rainfall monitoring.
Rain falling on the 203mm collecting funnel is directed through a siphon control unit and discharges as a steady stream into a two-compartment bucket mounted in an unstable equilibrium. As each compartment fills, the bucket tilts alternately about its axis. Each tip forces a contact closure by magnetic means corresponding to 0.2mm of rainfall according to bucket capacity. A calibration certificate is supplied with every RIM-7499 rain gauge.
Features
- Rugged and corrosion resistant construction
- Minimal maintenance, 25 years+ deployment life
- Low friction, non-seizing bucket bearings
- Gold plated buckets for minimal retention
- Dual reed-switch output
- Stable calibration
- Built-in bubble level
- Optional heater for cold weather operation (up to –40°C)
Specifications
- Collector diameter: 203mm (8’’) ± 0.2mm
- Resolutions: 0.2mm, 0.25mm, 0.5mm (0.01” & 0.02” to special order)
- Accuracy: ±3% to 250mm/hr, ±4% from 251mm/hr to 350mm/hr
- Contacts: Two normally open magnetically actuated reed switches. Individual protection built-in.
- Reed-switch rating: 50V AC/DC at 0.5A non-inductive Collector
- Heating option: 12 or 24V AC/DC (48W max) operation with electronic thermostatic control (P/N RIM7499-HOPT). Specify operating voltage at time of order
