Home > RH Humidity and Temperature Logger, 32k, Internal Sensors
Temprecord

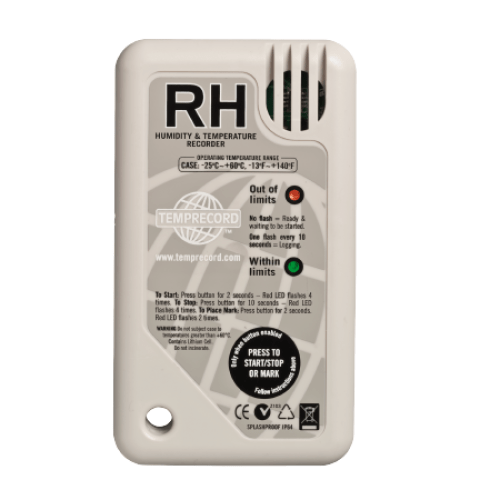

RH Humidity and Temperature Logger, 32k, Internal Sensors

DISCONTINUED
Product code: IC-953170ESCA

Unfortunately, the 953170ESCA has been discontinued and has been replaced by the 95GESCA.

RH data logger calibrated and corrected at 3-Points to ISO/IEC 17025 Calibration Laboratory Standard. Durable, reliable and tamper proof, appropriate for Monitoring of RH and/or temperature sensitive products or equipment in storage, laboratories, production processes or transit. Can also be used for analysis of weight loss due to inadequate RH environment. Temprecord SR2 Reader Interface required.

Read more

Unfortunately, the 953170ESCA has been discontinued and has been replaced by the 95GESCA.
Features:

- Durable, Reliable & Tamper Proof: Temperature and Humidity recording where product life and product integrity are critical
- 32K non-volatile memory (16K Temperature and 16K Relative Humidity)
- Calibrated temperature range is accurate to 0.2 C/0.35 Fand Relative Humidity to 3% RH (Logger Case temperature range is -25 to 60 C or -13 to +140 F)
- Temperature Units: C or F and % RH
- Compliance made easy with automated PDF report generation. Use speed-buttons from TRW software to save files as *.TR and/or *.PDF files, export to MS Excel, email or print data
- Fully welded food grade plastic case, splash proof to IP56, FDA approved

Calibrated:

3-Point Temperature and 2-Point RH Calibration built into logger:
- Superior accuracy guarantee
- No need for corrections or complex calculations to be applied to downloaded data
- Avoids human data entry errors, providing data integrity and peace of mind

Specifications


- Memory: 32K Non-volatile
- Sample Capacity: 32,000 samples per use 16,000 RH and 16,000 temperature samples
- Sample Period: Programmable between 2 seconds and 36 hours in 2 second increments
- Start Delay: Programmable between 10 seconds and 36 hours
- Start and Stop: Logger Button (if enabled), Palm PDA/Reader, TRW Software/Reader
- Recording Duration: 16 hours to 2 years (RH only) 8 hours to 2 years RH and Temperature
- Operating Temperature Range of Case: -25 to 60 C (-13 to 140 F)
- Operating Temperature Range of Data Logger: -25 to 60 C (-13 to 140 F)
- Temperature Accuracy: 0.2 C/0.35 F over the range -20 C/ -4 F to 50 C/122 F
- Display Resolution: 0.01 C or 0.01 F, Temperature, 0.1% RH
- Humidity Range: 0.00% to 100% RH
- Humidity Sensor Accuracy: 3% RH from 12 to 80% RH. Otherwise 4% RH from 0 to 12% and 80% to 100% RH within limits
- Indicator: One flash from Green LED Indicator every 10 seconds
- Out of Limits Indicator: One flash from Red LED Indicator every 10 seconds
- Battery Type: Lithium Thionyl Chloride (3.6V)
- Dimensions: 129 x 73.5 x 14mm or 51/8 x 27/8 x 5/8 inches
- Weight: 83g or 2.92oz
- Case Colour: White (Beige)
- Case and Protection Rating: Splashproof to IP56 FDA approved food grade casing
