Data Logging Rain Gauge (Metric) Data Logger - RG3-M
Order now and the extra items will likely dispatch before the 1st Oct 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.
Bonus Additional 1 Year Instrument Choice Warranty!
$1,562.00 AUD Inc. GST
IMPORTANT: Requires Hoboware Free or Hoboware-Pro software for proper operation. Also requires a Shuttle (with Hoboware-Pro), USB Base Station or USB Base Station for Pendant

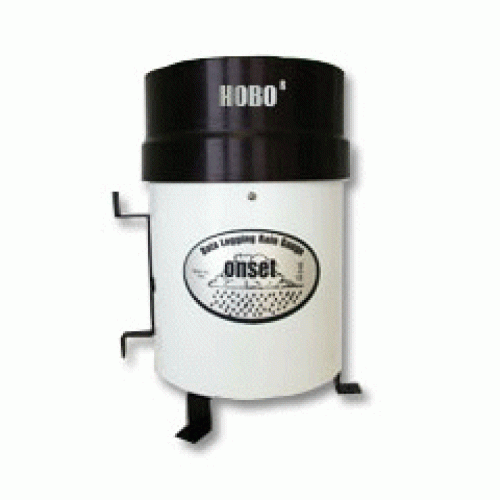

The Data Logging Rain Gauge is a fully self-contained battery-powered rainfall data collection and recording system which includes a HOBO Pendant Event data logger integrated into a tipping-bucket rain gauge. This model automatically records up to 3200 mm of rainfall data that can be used to determine rainfall rates, times and duration.
Features
- Self-contained rainfall logger includes a HOBO Pendant Event data logger with a high quality tipping-bucket rain gauge
- Time and date stamp is stored for each tip - provides detail needed to determine rainfall rates and duration
- Reliable, field-proven rain gauge
- Also records temperature when used with an optional radiation shield
Specifications
Rain gauge
- Maximum Rainfall Rate: 127 cm (5 in.) per hour
- Calibration Accuracy: 1.0% (up to 1 in./hour for the RG3 or 20 mm/hour for the RG3-M)
- Resolution: 0.01 in. (RG3) or 0.2 mm (RG3-M)
- Calibration: Requires annual calibration: can be field calibrated or returned to the factory for re-calibration
- Operating Temperature Range: 0 to +50C (+32 to +122F)
- Storage Temperature Range: -20 to +70C (-4 to +158F)
- Environmental Rating: Weatherproof
- Housing: 15.24cm (6-in.) aluminum bucket
- Tipping Bucket Mechanism: Stainless steel shaft with brass bearings
- Dimensions: 25.72 cm height x 15.24 cm diameter (10.125 x 6 in.); 15.39 cm (6.06 in.) receiving orifice
- Weight: 1.2 Kg (2.5 lbs)
- Part Numbers: RG3 (0.01 in. per tip), RG3-M (0.2 mm per tip)
- The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
Logger
- Time Stamp Resolution: 1.0 second
- Time Accuracy: 1 minute per month at 25C (77F), see Plot B on page 10.
- Operating Range: -20 to 70C (-4 to 158F)
- Environmental Rating (for logger used outside of rain gauge): Tested to NEMA 6 and IP67; suitable for deployment outdoors
- NIST Traceable Certification: Available for temperature only at additional charge; temperature range -20 to 70C (-4 to 158F)
- Battery: CR-2032 3V lithium battery; 1 year typical use
- Memory: 64K bytes 16K to 23K when recording events only; 25K to 30K data points when recording events and temperature
- Materials: Polypropylene case; stainless steel screws; Buna-N o-ring; PVC cable insulation
- The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
Temperature Measurement
- Measurement Range: -20 to 70C (-4 to 158F)
- Accuracy: 0.47C at 25C ( 0.85F at 77F), A solar radiation shield is required for accurate temperature measurements in sunlight.
- Resolution: 0.10C at 25C (0.18F at 77F)
- Drift: Less than 0.1C/year (0.2F/year)
- Response time: Airflow of 1 m/s (2.2 mph): 10 minutes, typical to 90%
