Rfrtdtemp2000A Wireless Temperature Data Logger
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 21st of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

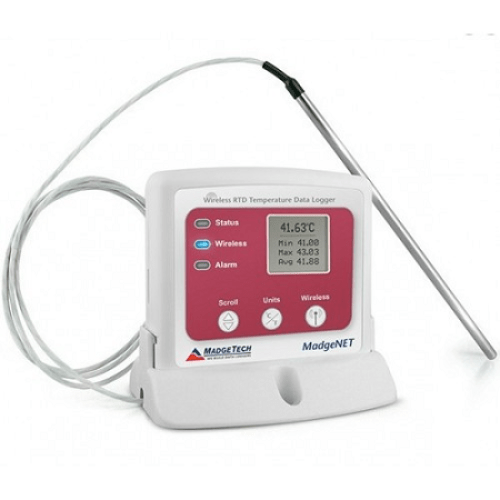

The RFRTDTemp2000A is an RTD-based, wireless temperature data logger with display. This data logger is ideal for applications that require high accuracy temperature monitoring such as within laboratories, pharmaceutical and biotech industries. The RFRTDTemp2000A accepts 2, 3 or 4 wire 100 platinum RTD's and features a device accuracy of 0.05 C
Regular price
$882.50 AUD
+ GST
$970.75 AUD Inc. GST
$970.75 AUD Inc. GST
The RFRTDTemp2000A is an RTD-based, wireless temperature data logger with digital display. This data logger is ideal for applications that require high accuracy temperature monitoring such as within laboratories, pharmaceutical and biotech industries. The RFRTDTemp2000A accepts 2, 3 or 4 wire 100 platinum RTDs and features a device accuracy of 0.05 C.
Starting, stopping and downloading can all be performed wirelessly using the RFC1000 wireless transceiver, allowing the user to spend less time maintaining the data logger. Data can be provided in real time back to a central PC, or the device may be downloaded at periodic intervals.
The convenient LCD screen displays the current reading as well as minimum, maximum and average statistics for a convenient look at the logged data. For out of range notification, an audible buzzer as well as LED alarm indicator can be programmed to alert users when the temperature is above or below the specified alarm setting. Email and text message alarms can also be configured through the MadgeTech Software.
The RFRTDTemp2000A can be used as a single, wireless data logger, or can be expanded to a large scale system, which can include hundreds of data loggers measuring a number of areas and parameters (additional MadgeTech wireless loggers and transceivers may be required). The RFRTDTemp2000A utilizes the MadgeTech 4 Software. Data can be viewed in graphical or tabular formats. Summary and statistics views are available for further analysis, as well as the ability to export to Excel.
Specifications
Temperature:
Temperature Sensor: External 100 Resistance Temperature Detector (RTD)
Temperature Range: -200 C to +850 C (-328 F to +1562 F)
Temperature Resolution: 0.001 C (0.0018 F)
Temperature Calibrated Accuracy: 0.01 (0.05 C)
Internal Channel Temperature Sensor: Internal Semiconductor
Wireless:
RF Carrier Frequency: 2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication.
Output Power: +0 dBm typical
Receiver Sensitivity: -95 dBm typical
Typical outdoors Line of sight: Up to 2000 ft
Typical Indoors line of sight: Up to 500 ft
General:
Memory: 16,128 readings per channel
Reading Rate: 1 reading every second up to 1 reading every 24 hours
Baud Rate: 250,000
IP Rating: IP22
Operating Environment: -20 C to +60 C (-4 F to + 140 F), 0 %RH to 95 %RH non-condensing
LED Indicators: Green, Blue & Red
Battery Life: 3 years typical at a 1 minute reading rate
Material: ABS plastic
Dimensions: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only
Temperature Sensor: External 100 Resistance Temperature Detector (RTD)
Temperature Range: -200 C to +850 C (-328 F to +1562 F)
Temperature Resolution: 0.001 C (0.0018 F)
Temperature Calibrated Accuracy: 0.01 (0.05 C)
Internal Channel Temperature Sensor: Internal Semiconductor
Wireless:
RF Carrier Frequency: 2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication.
Output Power: +0 dBm typical
Receiver Sensitivity: -95 dBm typical
Typical outdoors Line of sight: Up to 2000 ft
Typical Indoors line of sight: Up to 500 ft
General:
Memory: 16,128 readings per channel
Reading Rate: 1 reading every second up to 1 reading every 24 hours
Baud Rate: 250,000
IP Rating: IP22
Operating Environment: -20 C to +60 C (-4 F to + 140 F), 0 %RH to 95 %RH non-condensing
LED Indicators: Green, Blue & Red
Battery Life: 3 years typical at a 1 minute reading rate
Material: ABS plastic
Dimensions: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only
