Pressure, Humidity And Temperature Data Logger
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 14th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

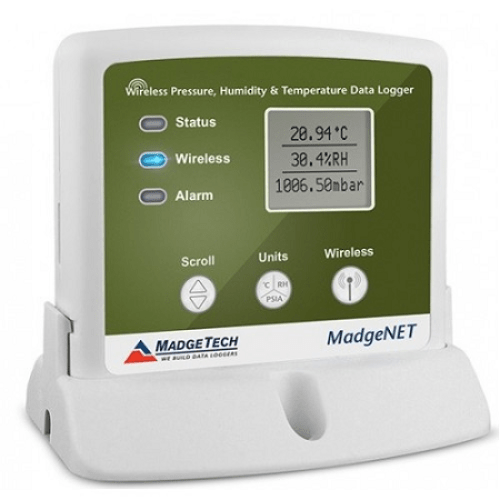

The RFPRHTemp2000A is a wireless data logger that measures and records ambient pressure, humidity and temperature. This dynamic data logger is ideal for monitoring weather data, measuring barometric pressure in high-rise buildings or monitoring storage or warehouse environments that contain sensitive material. Clinical laboratories and clean rooms can utilize the RFPRHTemp2000A to measure and maintain critical pressure, humidity or temperature levels, all with one device.
Regular price
$1,309.89 AUD
+ GST
$1,440.88 AUD Inc. GST
$1,440.88 AUD Inc. GST
The RFPRHTemp2000A is a wireless data logger that measures and records ambient pressure, humidity and temperature. This dynamic data logger is ideal for use in applications such as monitoring weather data, measuring barometric pressure in high-rise buildings or monitoring warehouse environments that contain sensitive material. Clinical laboratories and clean rooms can utilize the RFPRHTemp2000A to measure and maintain critical pressure, humidity or temperature levels, all with one device.
The RFPRHTemp2000A features a large LCD screen, providing instant access to current readings, as well as minimum, maximum and average statistics. Statistics can be reset directly on the keypad of the device, allowing customers to keep track of statistics over certain time periods. The RFPRHTemp2000A also features configurable alarms, battery life indicator and wall or surface mounting options.
The RFPRHTemp2000A can be used as a standalone data logger, or used in conjunction with the RFC1000 wireless transceiver to transmit data back to a central PC in real time. The RFPRHTemp2000A can transmit up to 500 feet (line of sight) to the RFC1000 transceiver. Multiple RFC1000s can be used as repeaters to allow the data to travel further distances.
As with all MadgeTech 2000A wireless data loggers, the RFPRHTemp2000A can be used as a single wireless data logging system, or can be expanded to a large scale system, which can include hundreds of data loggers. The RFPRHTemp2000A utilizes the latest MadgeTech 4 Software. Downloaded data can be viewed in both graphical and tabular formats, as well as summary and statistics views for further analysis. The software features data annotation, digital calibration, as well as the capability to be exported to Excel for further calculations.
Temperature:
Internal Channel Temperature Sensor: Resistance Temperature Detector (RTD)
Internal Channel Temperature Range: -20 C to +60 C (-4 F to +140 F)
Internal Channel Temperature Resolution: 0.01 C (0.018 F)
Internal Channel Temperature Calibrated Accuracy: 0.5 C (+5 C to +55 C)
Humidity:
Humidity Sensor: Relative Humidity Sensor
Humidity Range: 0 %RH to 95 %RH
Humidity Resolution: 0.1 %RH
Humidity Calibrated Accuracy: 3.0 %RH, 2.0 %RH typical @ 25 C (10 to 90 %RH; +5 C to +55 C)
Pressure:
Pressure SensorL: Silicon
Pressure Range: 250 mbar to 1300 mbar
Pressure Resolution: 0.02 mbar
Pressure Calibrated Accuracy: 10 mbar (+5 C to +55 C)
Wireless:
RF Baud Rate: 250,000
Output Power: +0 dBm typical
Receiver Sensitivity: -95 dBm typical
Typical outdoors Line of sight: Up to 2000 ft
Typical Indoors line of sight: Up to 500 ft
General:
Memory: 10,752 readings per channel
Reading Rate: 1 reading every second up to 1 reading every 24 hours
Baud Rate: 250,000
LED Indicators: Green, Blue & Red
Battery Life: 5 years typical at a 15 minute reading rate
Material: ABS plastic
Operating Environment: -20 C to +60 C (-4 F to +140 F),0 %RH to 95 %RH non-condensing,0.002 PSIA to 100 PSIA
Dimensions: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only
Specifications
Temperature:
Internal Channel Temperature Sensor: Resistance Temperature Detector (RTD)
Internal Channel Temperature Range: -20 C to +60 C (-4 F to +140 F)
Internal Channel Temperature Resolution: 0.01 C (0.018 F)
Internal Channel Temperature Calibrated Accuracy: 0.5 C (+5 C to +55 C)
Humidity:
Humidity Sensor: Relative Humidity Sensor
Humidity Range: 0 %RH to 95 %RH
Humidity Resolution: 0.1 %RH
Humidity Calibrated Accuracy: 3.0 %RH, 2.0 %RH typical @ 25 C (10 to 90 %RH; +5 C to +55 C)
Pressure:
Pressure SensorL: Silicon
Pressure Range: 250 mbar to 1300 mbar
Pressure Resolution: 0.02 mbar
Pressure Calibrated Accuracy: 10 mbar (+5 C to +55 C)
Wireless:
RF Baud Rate: 250,000
Output Power: +0 dBm typical
Receiver Sensitivity: -95 dBm typical
Typical outdoors Line of sight: Up to 2000 ft
Typical Indoors line of sight: Up to 500 ft
General:
Memory: 10,752 readings per channel
Reading Rate: 1 reading every second up to 1 reading every 24 hours
Baud Rate: 250,000
LED Indicators: Green, Blue & Red
Battery Life: 5 years typical at a 15 minute reading rate
Material: ABS plastic
Operating Environment: -20 C to +60 C (-4 F to +140 F),0 %RH to 95 %RH non-condensing,0.002 PSIA to 100 PSIA
Dimensions: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only
