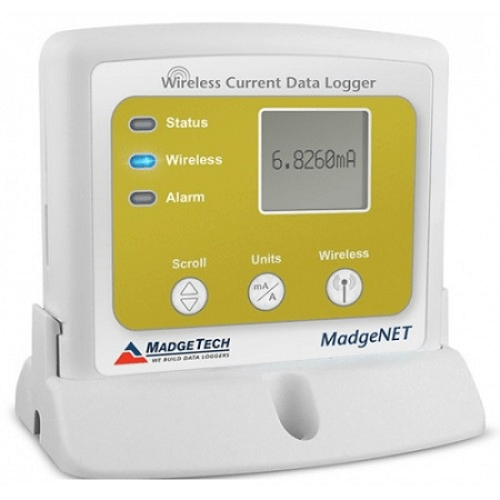

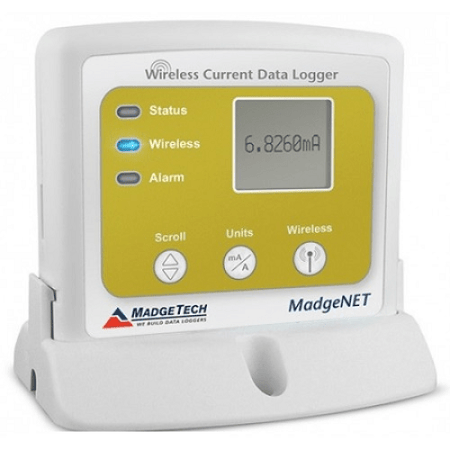

RFCurrent2000A DC Current Data Logger - IC-RFCurrent2000A
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 14th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
The RFCurrent2000A is a wireless data logger with display, designed to measure and record DC current signals. The data logger can connect directly to low-level DC current sources which makes it ideal for (PV) Photovoltaic research to monitor current sourced from solar cells over time, battery usage studies, energy monitoring studies and other DC current monitoring applications.
Regular price
$882.50 AUD
+ GST
$970.75 AUD Inc. GST
$970.75 AUD Inc. GST
Features:
The RFCurrent2000A is a wireless data logger with LCD display, designed to measure and record DC current signals. The data logger can connect directly to low-level DC current sources which makes it ideal for (PV) Photovoltaic research to monitor current sourced from solar cells over time, battery usage studies, energy monitoring studies and other DC current monitoring applications. The RFCurrent2000A can also be interfaced with a wide range of current output sensors such as flow meters, pH transmitters and more. Through the MadgeTech software, the device can be programmed with engineering units, which convert the current readings into a different unit of measure, such as flow rate. The engineering unit is available for display on the LCD screen as well as within the software. The RFCurrent2000A is available in 20 mA, 160 mA or a 3 A measurement range.
The RFCurrent2000A can be used as a single, wireless data logging system, or can be expanded to a large scale system, which can include hundreds of data loggers measuring different parameters such as temperature, humidity and more (additional MadgeTech wireless data loggers and transceivers may be required). The RFCurrent2000A utilizes the latest MadgeTech 4 Software. Data can be viewed in graphical or tabular formats and summary and statistics views are available for further analysis. The software features export to Excel, data annotation, digital calibration and more.
Current:
Current Range20 mA: -2 mA to 30 mA/160 mA: 160 mA/3 A: 3 A
Current Resolution: 20 mA: 0.5 A/160 mA: 5 A/3 A: 100 A
Current Calibrate Accuracy: 20 mA, 160 mA: 0.05 %FSR/3 A: 0.15 %FSR
Current Input Impedance: 20 mA: 10 , 1%/160 mA: 1 , 1%/3 A: <0.05
Wireless:
RF Carrier Frequency: 2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication.
Output Power: +0 dBm typical
Receiver Sensitivity: -95 dBm typical
Typical outdoors Line of sight: Up to 2000 ft
Typical Indoors line of sight: Up to 500 ft
General:
Memory: 32,256 readings per channel
Reading Rate: 1 reading every second up to 1 reading every 24 hours
Baud Rate: 250,000
Channels: 1
LED Indicators: Green, Blue & Red
Operating Environment: -20 C to +60 C (-4 F to +140 F), 0 %RH to 95 %RH non-condensing
Dimensions: 20 mA & 3 A: 3.19 in x 3.5 in x 0.95 in (80.9 mm x 88.9 mm x 24.1 mm)
Battery Life4 years typical at a 15 minute reading rate
The RFCurrent2000A is a wireless data logger with LCD display, designed to measure and record DC current signals. The data logger can connect directly to low-level DC current sources which makes it ideal for (PV) Photovoltaic research to monitor current sourced from solar cells over time, battery usage studies, energy monitoring studies and other DC current monitoring applications. The RFCurrent2000A can also be interfaced with a wide range of current output sensors such as flow meters, pH transmitters and more. Through the MadgeTech software, the device can be programmed with engineering units, which convert the current readings into a different unit of measure, such as flow rate. The engineering unit is available for display on the LCD screen as well as within the software. The RFCurrent2000A is available in 20 mA, 160 mA or a 3 A measurement range.
The RFCurrent2000A can be used as a single, wireless data logging system, or can be expanded to a large scale system, which can include hundreds of data loggers measuring different parameters such as temperature, humidity and more (additional MadgeTech wireless data loggers and transceivers may be required). The RFCurrent2000A utilizes the latest MadgeTech 4 Software. Data can be viewed in graphical or tabular formats and summary and statistics views are available for further analysis. The software features export to Excel, data annotation, digital calibration and more.
Specifications
Current:
Current Range20 mA: -2 mA to 30 mA/160 mA: 160 mA/3 A: 3 A
Current Resolution: 20 mA: 0.5 A/160 mA: 5 A/3 A: 100 A
Current Calibrate Accuracy: 20 mA, 160 mA: 0.05 %FSR/3 A: 0.15 %FSR
Current Input Impedance: 20 mA: 10 , 1%/160 mA: 1 , 1%/3 A: <0.05
Wireless:
RF Carrier Frequency: 2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication.
Output Power: +0 dBm typical
Receiver Sensitivity: -95 dBm typical
Typical outdoors Line of sight: Up to 2000 ft
Typical Indoors line of sight: Up to 500 ft
General:
Memory: 32,256 readings per channel
Reading Rate: 1 reading every second up to 1 reading every 24 hours
Baud Rate: 250,000
Channels: 1
LED Indicators: Green, Blue & Red
Operating Environment: -20 C to +60 C (-4 F to +140 F), 0 %RH to 95 %RH non-condensing
Dimensions: 20 mA & 3 A: 3.19 in x 3.5 in x 0.95 in (80.9 mm x 88.9 mm x 24.1 mm)
Battery Life4 years typical at a 15 minute reading rate
