RAK7289V2 16-channel Outdoor LoRaWAN Gateway (AS923) - IC-719125
3 AVAILABLE
Availability Info (?)
Order now and the extra items will likely dispatch before the 21st Sep 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.

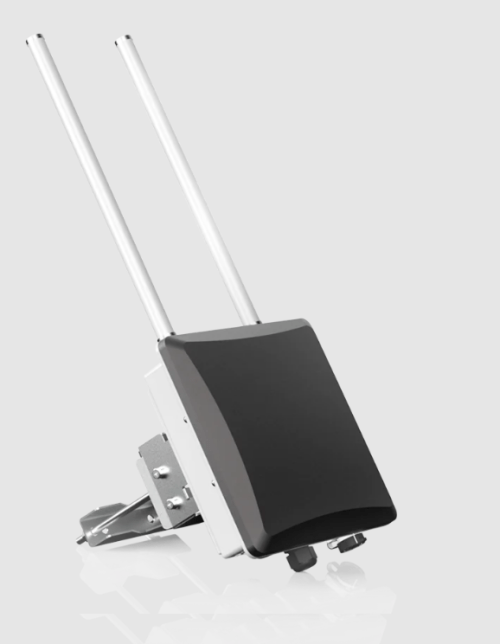

The RAK7289V2 WisGate Edge Pro version 2 s the RAK’s newest outdoor LoRaWAN gateway. This version has 16-channels, AS923 frequency; without lora antenna, without LTE.
Regular price
$959.00 AUD
+ GST
$1,054.90 AUD Inc. GST
$1,054.90 AUD Inc. GST
The RAK7289V2 WisGate Edge Pro version 2 s the RAKs newest outdoor LoRaWAN gateway. This version has 8-channels, AU915 frequency; without lora antenna.
It is based on the latest SX1303 LoRa core, providing better sensitivity and improved performance. The gateway supports multi-backhaul with Ethernet, Wi-Fi, and Cellular connectivity. Optionally there is a dedicated port for different power options and full integration with RAK Battery Plus off-grid power solution. The gateways new enclosure design allows the LTE, Wi-Fi, and GPS antennas to be inside the enclosure.
Supported LoRaWAN Network Servers:
ChirpStack v3, TTN/TTS, AWS IoT Core for LoRaWAN, AWS IoT core integration, Actility LNS with Basics Station
Features (Hardware):
- IP67/NEMA-6 industrial-grade enclosure with cable glands
- PoE (802.3af) + Surge Protection
- Dual LoRa Concentrators for up to 16 channels
- Backhaul: Wi-Fi and Ethernet
- GPS
- Supports DC 12V or Battery Plus off-grid system
- Internal antenna for Wi-Fi, GPS, and LTE, External antenna for LoRa
Features (Software):
- WisGateOS 2
- Extension add-ons
- Built-in Network Server
- LoRaWAN 1.0.3 (LoRaWAN 1.0.4 for the Built-in server is coming soon)
- Basics Station and Packet forwarder
- LoRa Frame filtering (node whitelisting)
- MQTT v3.1 Bridging with TLS encryption(compatible with ChirpStack LNS)
- Buffering of LoRa frames in Packet Forwarder mode in case of NS outage (no data loss)
Includes:
- 1pc Gateway
- 1pc Ethernet Cable Gland
- 1pc POE Injector
- 1pc Mounting Brackets
- 1set Screws
