RAK7268v2 WisGate Edge Lite 8 Channel Indoor LoRaWAN Gateway (AU915) - IC-717122

5 AVAILABLE
Availability Info (?)

Order now and the extra items will likely dispatch before the 14th Oct 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.

Product code: IC-717122

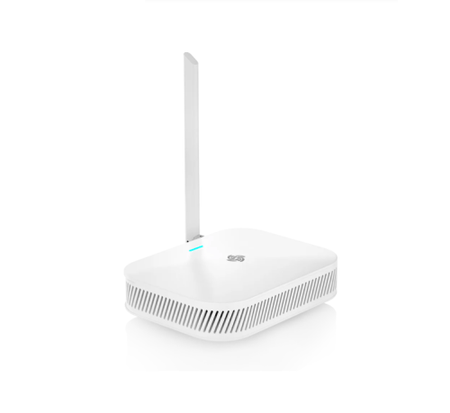

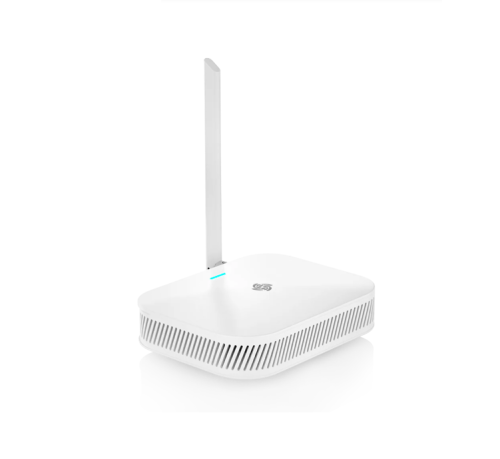

The WisGate Edge Lite 2 version 2 (RAK7268V2/RAK7268CV2) is the latest RAK indoor gateway for LoRaWAN. It comes with the newest WisGateOS 2 which provides all the existing features of the WisGateOS but adds many options, and tooltips. It comes with extension add-ons – an option to add and manage additional features catering to your need.

  • The gateway supports 8 LoRa channels, multi backhaul with Ethernet, Wi-Fi, and Cellular connectivity with LTE Cat4 (EC25) . Breathing light LED that helps to identify the working status visually.
  • This product provides a solid out-of-the-box experience for quick deployment.
  • The RAK7268V2/RAK7268CV2 is suited for any use case scenario, be it rapid deployment or customization regarding UI and functionality.

Read more

$421.00 AUD + GST
 $463.10 AUD Inc. GST
The WisGate Edge Lite 2 version 2 (RAK7268V2/RAK7268CV2) is the latest RAK indoor gateway for LoRaWAN. It comes with the newest WisGateOS 2 which provides all the existing features of the WisGateOS but adds many options, and tooltips. It comes with extension add-ons an option to add and manage additional features catering to your need.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
Features:
- It comes with the newest WisGateOS 2 which provides all the existing features of the WisGateOS but adds many options, and tooltips. It comes with extension add-ons an option to add and manage additional features catering to your need.
- The gateway supports 8 LoRa channels, multi backhaul with Ethernet, Wi-Fi, and Cellular connectivity. Breathing light LED that helps to identify the working status visually.
- This product provides a solid out-of-the-box experience for quick deployment.
- The RAK7268V2/RAK7268CV2 is suited for any use case scenario, be it rapid deployment or customization regarding UI and functionality.
- The gateway can be remotely managed with the WisDM platform.
- It is an ideal product for Smart Buildings, Smart offices, Smart factories, and many more.
Hardware Features:
- 8 LoRa channels
- Supports 2.4 GHz Wi-Fi AP for configuration
- 100M Base-T Ethernet with PoE
- 12V DC power supply
- RP-SMA LoRa antenna connector
- Multi back-haul with Ethernet, Wi-Fi, Cellular(RAK7268CV2)
- SD card for log backup and LoRa frame buffering (in case of backhaul failover)
-LTE Cat4 (EC25)
- Breathing light for visual monitoring the status
Software Features:
- WisGateOS 2
- Extension add-ons
- Built-in Network Server
- LoRaWAN 1.0.3 (LoRaWAN 1.0.4 for the Built-in server is coming soon)
- Basics Station and Packet forwarder
- LoRa Frame filtering (node whitelisting)
- MQTT v3.1 Bridging with TLS encryption(compatible with ChirpStack LNS)
- Buffering of LoRa frames in Packet Forwarder mode in case of NS outage (no data loss)
Package Includes:
- 1pc Gateway
- 1pc LoRa antenna
- 1pc Power supply
- 1pc mounting bracket
