Netvox

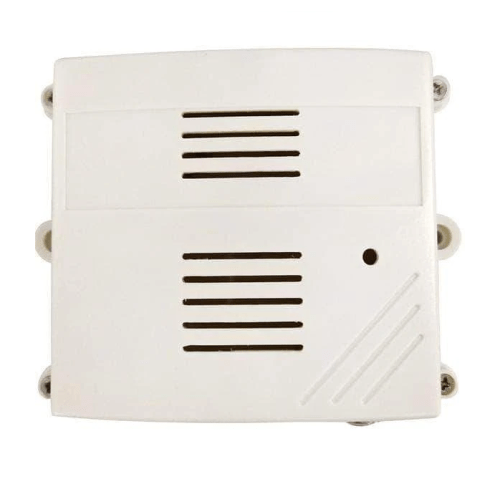

RA0701 LoRaWAN Wireless Carbon Monoxide Sensor (AU915) - IC-RA0701-915

ORDER ME IN
Product code: IC-RA0701-915

Order Me In, Once ordered this item will likely dispatch before the 07th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

RA0701 is a wireless communication device that detects the carbon monoxide content in ambient air. RA0701 can detect the concentration of CO in the air. The body and the sensor are connected through the RS485 interface, and the detected data is transmitted to the data center through the wireless network for display. It adopts the wireless communication method conforming to the LoRaWAN protocol standard. The communication is fully compatible with LoRaWAN Protocol (Class A).

Read more

$670.00 AUD + GST
 $737.00 AUD Inc. GST
RA0701 is a wireless communication device that detects the carbon monoxide content in ambient air. RA0701 can detect the concentration of CO in the air. The body and the sensor are connected through the RS485 interface, and the detected data is transmitted to the data center through the wireless network for display. It adopts the wireless communication method conforming to the LoRaWAN protocol standard. The communication is fully compatible with LoRaWAN Protocol (Class A).
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
Features:
- Wireless Range of 10 Km
- LoRaWAN Class A Compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management For Longer Battery Life
- Encrypt-RF Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
- Battery Life: 2 to 5 Years (Conditions: Ambient Temperature 25 C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)
- Over-The-Air Updates: Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne

Specifications

Electric:
- Power Supply: Adapter DC Powered 12V/1.5A
- Working Current: <90mA
- RX Current: 11mA at 3.3V
- TX Current: 120mA at 3.3V
- Co Measurement Range: 0-2000 ppm
- Co Resolution: 0.5 ppm
Frequency:
- Frequency Range: AU915MHz
- TX Power: 19dBm, Typical
- Rx Sensitivity: -121dBm (Frequency Deviation=5kHz,Bit Rate=1.2kb/S)
- Build-In Antenna: Build-In Antenna
- Communication Range: 2km Typical Output Power
- Data Transfer Rate: 1.2 to 50 kbps
- Spread Technique: FSK/OOK
Physical:
- Dimensions (LxWxH): 111 x 86 x 41 mm
- Working temp: -20 to 55 C
- Storage Temp: -40 to 85 C
