Netvox

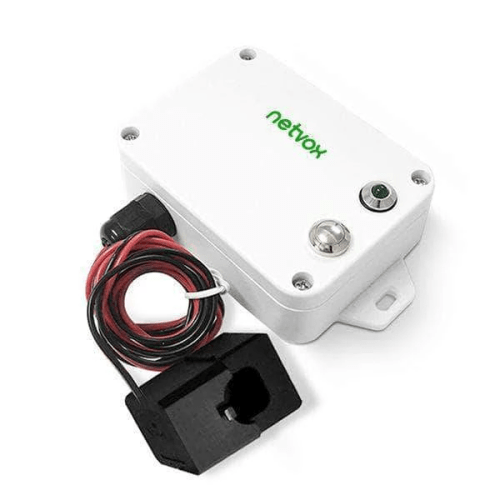

R718N115 LoRaWAN Wireless 1-Phase Current Meter with 1x 150A Clamp-on CT (AU915)

ORDER ME IN
Product code: IC-R718N115-915

Order Me In, once ordered this item will likely dispatch before the 07th of August 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The NETVOX wireless single-phase current detector is used to detect single-phase electrical input current. The device is compatible with the LoRaWAN protocol, and integrates a chip module that conforms to the LoRaWAN wireless protocol to display the collected data in the gateway.

Read more | Need help? 3 Hour Business Reply

$270.00 AUD + GST
 $297.00 AUD Inc. GST
The NETVOX wireless single-phase current detector is used to detect single-phase electrical input current. The device is compatible with the LoRaWAN protocol, and integrates a chip module that conforms to the LoRaWAN wireless protocol to display the collected data in the gateway.
The device is powered by the battery and obtains the load AC current value through the current transformer. The device adopts the split-core current transformer, which can be conveniently connected to the measuring device.
The communication is fully compatible with LoRaWAN Protocol (Class A).
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
Features:
- Wireless Range of 10 Km
- LoRaWAN Class A Compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management For Longer Battery Life
- Encrypt-RF Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
- Battery Life: 2- 5 years specific conditions (Ambient Temperature 25 C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)
- Over-The-Air Updates
- Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne

Specifications

Electric:
- Input Power: 2 X 3.6V ER14505 Lithium Batteries Parallel Power Supply (3.6V, 2400mah/Section?
- Sleeping Current: 25uA
- Wake Up Current: 7mA
- Receiving Current (Max): 11mA at 3.3V
- Transmitting Current (Max): 127mA at 3.3V
- Battery Voltage Measurement Accuracy: +/- 0.1V
- Current Measurement Accuracy: <+-1%
- Current Measurement Accuracy Range: 1A To 150A (Depending On The Current Transformer Configuration)
Frequency:
- TX Power: 19dBm +/- 1dBm
- Rx Sensitivity: -136dBm (LoRa?Spreading Factor=12, Bit Rate=293bps); -121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
- Antenna Type: Build-In Antenna
- Communication Range: Up To 10 Km, The Actual Transmission Distance Depends On The Environment.
- Data Transfer Rate: 0.3kbps to 50kbps
- Spread Technique: LoRa/FSK
- Available Frequency: AU915-928
