Netvox

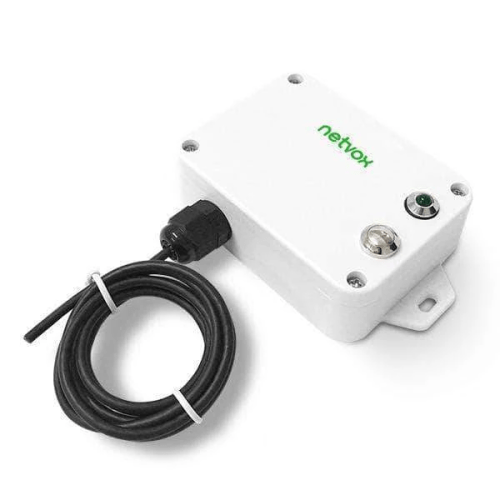

R718KA LoRaWAN Wireless MA Current Meter Interface (4~20MA, AU915) - IC-R718KA-915

ORDER ME IN
Product code: IC-R718KA-915

Order Me In, once ordered this item will likely dispatch before the 07th of August 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The Wireless 4-20 mA DC Current Meter is designed to offer a large selection of easy-to-use current 4-20 mA data loggers for load monitoring. The wireless communication is compatible with LoRaWAN Protocol (ClassA).

Read more | Need help? 3 Hour Business Reply

$199.00 AUD + GST
 $218.90 AUD Inc. GST
The Wireless 4-20 mA DC Current Meter is designed to offer a large selection of easy-to-use current 4-20 mA data loggers for load monitoring. The wireless communication is compatible with LoRaWAN Protocol (ClassA).
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
Features:
- Wireless Range of 10km
- LoRaWAN Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management for Longer Battery Life
- Encrypt-RF Security (Diffie-Hellman Key Exchange + AES-128 CBC for Sensor Data Messages)
- Battery Life: Please Refer To Web: http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
- Over-The-Air Updates (Future)
- Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data
- And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects

Specifications

Electric:
- Input Power: 2 X 3.6V ER14505 AA Lithium Batteries (3.6V 2400mah/Section)
- Sleeping Mode: 21uA
- Wake Up Mode: 6.3mA at 3.3V
- Receiving Current (Max): 11mA at 3.3V
- Transmitting Current (Max): 120mA/3.3V
- Battery Voltage Measurement Accuracy: +/- 0.1V
- Low Voltage Threshold: 3.2V
Frequency:
- TX Power: 19 dBm +/- 1 dBm
- Rx Sensitivity: -136dBm (LoRa?Spreading Factor=12, Bit Rate=293bps ); -121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
- Antenna Type: Build-In Antenna
- Communication Range: 10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment)
- Data Transfer Rate: 0.3kbps to 50kbps
- Spread Technique: LoRa/FSK
- Available Frequency: AU915
Physical:
- Environment Temperature Range: -20 to 55 C
- Environment Humidity Range: <90% RH (No Condensation)
- Storage Temperature: -40 to 85 C
- IP Rating (Main Part): IP67
- IP Rating (External Sensor): IP65
