Netvox

R718IB LoRaWAN Wireless 0-10V ADC Sampling Interface (AS923) - IC-R718IB-923

ORDER ME IN
Product code: IC-R718IB-923

Order Me In, Once ordered this item will likely dispatch before the 24th of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

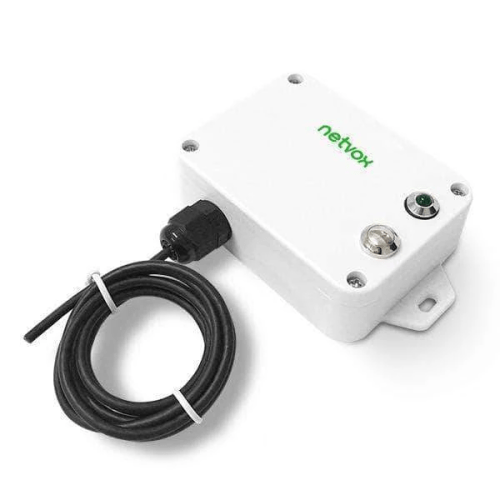

The Netvox R718IB LoRaWAN Sensor can be connected to an ADC sampling interface device. As shown in the user guide, black is the ground line, red is the ADC sampling interface line, and the ADC sampling voltage range is 0-5V or 0-10V. it uses the SX1276 wireless communication module. Its wireless communication meets standard LoRaWAN Protocol (Class A).

Read more

$183.00 AUD + GST
 $201.30 AUD Inc. GST
The Netvox R718IB LoRaWAN Sensor can be connected to an ADC sampling interface device. As shown in the user guide, black is the ground line, red is the ADC sampling interface line, and the ADC sampling voltage range is 0-5V or 0-10V. it uses the SX1276 wireless communication module. Its wireless communication meets standard LoRaWAN Protocol (Class A).
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
Features:
- LoRaWAN Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management For Longer Battery Life
- Encrypt-RF Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
- Battery Life: Please Refer To Web: Http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
- Over-The-Air Updates
- Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects

Specifications

Electric:
- Input Power: 2 X 3.6V ER14505 AA Lithium Batteries (3.6V 2400 mah/Section)
- Sleeping Mode: 22uA
- Wake Up Mode: 6.3mA at 3.3V
- Receiving Current (Max): 11mA at 3.3V
- Transmitting Current (Max): 120mA/3.3V
- Battery Voltage Measurement Accuracy: +/- 0.1V
- Low Voltage Threshold: 3.2V
Frequency:
- Frequency Range: AS923
- TX Power: 19 dBm +/- 1 dBm
- Rx Sensitivity: -136dBm (LoRa?Spreading Factor=12, Bit Rate=293bps), -121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
- Antenna Type: Build-In Antenna
- Communication Range: 10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment)
- Data Transfer Rate: 0.3kbps to 50kbps
- Spread Technique: LoRa/FSK
Physical:
- Dimension Main Part (LxWxH): 112mm x 65mm x 32mm
- Environment Temperature Range: -20 to 55 C
- Environment Humidity Range: <90% RH (No Condensation)
- Storage Temperature: -40 to 85 C
- IP Rating (Main Part): IP67
- IP Rating (External Sensor): IP65
