Netvox

R718F2 LoRaWAN Wireless 2-Gang Reed Switch Open/Close Detection Sensor (AU915-928) - IC-R718H-915

ORDER ME IN
Product code: IC-R718H-915

Order Me In, once ordered this item will likely dispatch before the 07th of August 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

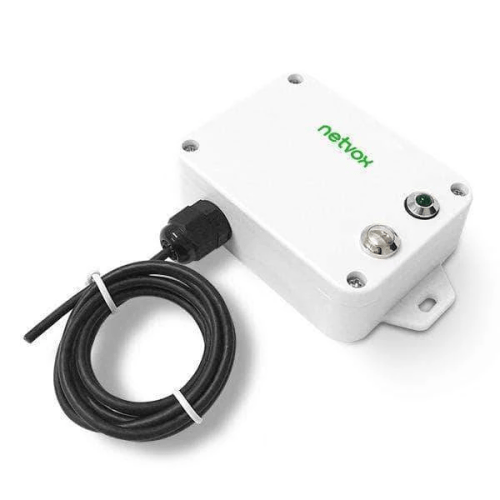

R718F2 utilizes two reed switches to detect whether two objects are separated or not, appropriate for monitoring open/closed doors and windows for security monitoring.

Read more | Need help? 3 Hour Business Reply

$235.00 AUD + GST
 $258.50 AUD Inc. GST
The device is connected with a pulse detection interface, which can calculate the number of pulses and send the detected number of pulses to the gateway display. It uses the SX1276 LoRaWAN wireless communication module.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
Features:
- Wireless Range of 10km
- LoRaWAN Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management for Longer Battery Life
- Encrypt-RF Security (Diffie-Hellman Key Exchange + AES-128 CBC for Sensor Data Messages)
- Battery Life: Please Refer To Web: http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
- Over-The-Air Updates (Future)
- Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data and Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects

Specifications

Electric:
- Input Power: 2 X 3.6V ER14505 AA Lithium Batteries (3.6V2400mah/Section)
- Sleeping Mode: 23 UA
- Wake Up Mode: 6.3mA at 3.3V
- Receiving Current (Max): 11mA at 3.3V
- Transmitting Current (Max): 120mA/3.3V
- Battery Voltage Measurement Accuracy: +/- 0.1V
Frequency:
- TX Power: 19 dBm +/- 1 dBm
- Rx Sensitivity: -136dBm (LoRa?Spreading Factor=12, Bit Rate=293bps ); -121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
- Antenna Type: Build-In Antenna
- Communication Range: 10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment)
- Data Transfer Rate: 0.3kbps to 50kbps
- Spread Technique: LoRa/FSK
- Available Frequency: AU915-928
Physical:
- Dimension (Main Part, LxWxH): 112mm x 65mm x 32mm
- Weight: 150g
- Environment Temperature Range: -20 to 55
- Environment Humidity Range: <90% RH (No Condensation)
- Storage Temperature: -40 to 85 C
