R718F2 LoRaWAN Wireless 2-Gang Reed Switch Open/Close Detection Sensor (AU915-928) - IC-R718F2-915
Backorder Now, once ordered your item will dispatch before the 04th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

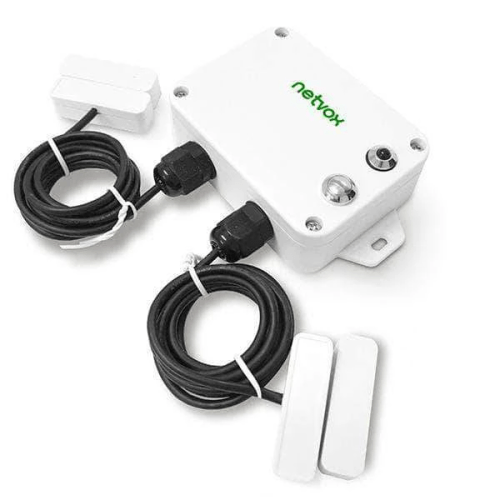

R718F2 utilizes two reed switches to detect whether two objects are separated or not, appropriate for monitoring open/closed doors and windows for security monitoring.
Regular price
$235.00 AUD
+ GST
$258.50 AUD Inc. GST
$258.50 AUD Inc. GST
R718F2 utilizes two reed switches to detect whether two objects are separated or not, appropriate for monitoring open/closed doors and windows for security monitoring.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
Features:
- Wireless Range Of 10 Km
- LoRaWAN Class A Compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management For Longer Battery Life
- Encrypt-RF Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
- Battery Life: 2-5 years (Conditions: Ambient Temperature 25 C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)
- Over-The-Air Updates:
- Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
Specifications
Electric:
- Input Power: 2 X 3.6V ER14505 AA Lithium Batteries (3.6V2400mah/Section)
- Sleeping Mode: 26uA
- Wake Up Mode: 6.3mA at 3.3V
- Receiving Current (Max): 11mA at 3.3V
- Transmitting Current (Max): 120mA/3.3V
- Battery Voltage Measurement Accuracy: +/- 0.1V
- Low Voltage Threshold: 3.2V
Frequency:
- TX Power: 19 dBm +/- 1 dBm
- Rx Sensitivity: -136dBm (LoRa?Spreading Factor=12, Bit Rate=293bps ); -121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
- Antenna Type: Build-In Antenna
- Communication Range: 10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment)
- Data Transfer Rate: 0.3kbps to 50kbps
- Spread Technique: LoRa/FSK
- Available Frequency: AU915-928
Physical:
- Dimension (Main Part, LxWxH): 112mm x 65mm x 32mm
- Weight: 141g
- Environment Temperature Range: -20 to 55 C
- Environment Humidity Range: <90% RH (No Condensation)
- Storage Temperature: -40 to 85 C
- IP Rating (Main Part): IP67
- IP Rating (External Sensor): IP67
