Netvox

R602A LoRaWAN Wireless Siren (AS923) - IC-R602A-923

ORDER ME IN
Product code: IC-R602A-923

Backorder Now, once ordered your item will dispatch before the 09th of July 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

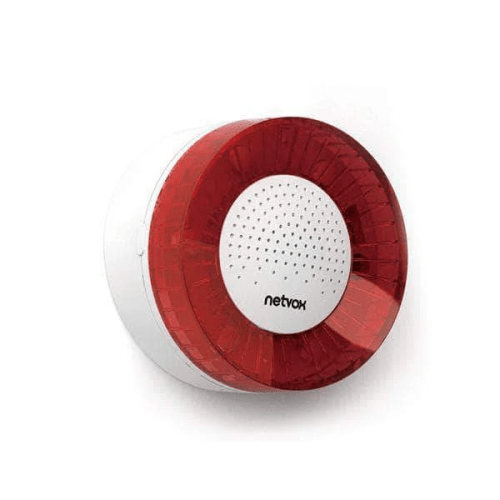

R602A is an intelligent wireless alarm that can communicate with other devices through LoRaWAN wireless network. It has high-power speakers and high-brightness LEDs for sound and light alarms. It uses SX1276 LoRaWAN wireless communication module.

Read more | Need help? 3 Hour Business Reply

$211.00 AUD + GST
 $232.10 AUD Inc. GST
RA0701 is a wireless communication device that detects the carbon monoxide content in ambient air. RA0701 can detect the concentration of CO in the air. The body and the sensor are connected through the RS485 interface, and the detected data is transmitted to the data center through the wireless network for display. It adopts the wireless communication method conforming to the LoRaWAN protocol standard. The communication is fully compatible with LoRaWAN Protocol (Class A).
Features:
- Wireless Range of 10 Km
- LoRaWAN Class A Compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management For Longer Battery Life
- Encrypt-RF Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
- Battery Life: 2 to 5 Years (Conditions: Ambient Temperature 25 C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)
- Over-The-Air Updates: Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne

Specifications

Electric:
- Input Power: DC +12V
- Working Current (Max): 250mA(DC 12V)
- Standby Current (Max): 30mA(DC 12V)
- Alarm Sound Level (At Three Meters): greater than or equal to 80dB
- Alarm Light Illumination: LUX(TBD)
Frequency:
- Frequency Range: 863MHz-928MHz 470MHz-510MHz
- TX Power: 19dBm +/- 1dBm
- Rx Sensitivity: -136dBm (LoRa?Spreading Factor=12?Bit Rate=293bps ); -121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
- Antenna Type: Build-In Antenna
- Communication Range: Up To 10km, The Actual Transmission Distance Depends On The Environment.
- Data Transfer Rate: 0.3kbps to 50kbps
- Spread Technique: LoRa/FSK
- Available Frequency: AS923
