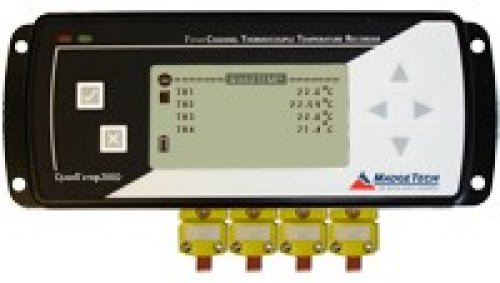

4 Channel Thermocouple Logger With Lcd
Unfortunately, the QuadTemp2000 has been discontinued, check out the IC-TCTempX4LCD as possible alternative.
The QuadTemp2000 is ideal for a variety of applications, whether it is remote temperature monitoring, or multiple points in a central location. Data from all channels is simultaneously logged and displayed onscreen for real-time monitoring. It can then be downloaded to a PC for further analysis. The QuadTemp also has enhanced memory capacity, allowing the data logger to measure and record data up to 500,000 readings per channel.
The QuadTemp2000 comes with a wall mounted 240VAC/9VDC power adapter.
Specifications
Temperature
|
Internal Channel Temperature Sensor |
Semiconductor
|
|---|---|
|
Internal Channel Temperature Resolution |
0.05C
|
|
Remote Channel Temperature Sensor |
Thermocouple Types J, K, T, E, R, S, B ,N
|
|
Remote Channel Temperature Range |
Thermocouple Dependent
|
|
Remote Channel Temperature Resolution |
Thermocouple Dependent
|
|
Remote Channel Temperature Calibrated Accuracy |
Thermocouple Dependent
|
General
|
Memory |
500,000/channel
|
|---|---|
|
Reading Rate |
4 seconds up to 24 hours
|
|
Baud Rate |
115,200
|
|
Cold Junction Compensation |
Automatic
|
|
Channels |
1 Internal & 4 Remote
|
|
Battery Life |
18 month battery life with display off. 3 months typical with continuous display use.
|
|
Material |
Anodized aluminum
|
|
Dimensions |
7.24" x 2.7" x 1.14" (183mm x 68mm x 28mm)
|
|
Operating Environment |
-20~+60C, 0 to 95% RH, non-condensing
|
|
Required Interface Package |
IFC200
|
|
Approvals |
CE
|
Product Tables
|
Thermocouple |
Range(C) | Resolution | Accuracy |
|
J |
-210 to +760
|
0.1C
|
.5C
|
|---|---|---|---|
|
K |
-260 to +1370
|
0.1C
|
.5C
|
|
T |
-260 to +400
|
0.1C
|
.5C
|
|
E |
-260 to +980
|
0.1C
|
.5C
|
|
R |
-50 to +1760
|
0.5C
|
2C
|
|
S |
-50 to +1760
|
0.5C
|
2C
|
|
B |
+60 to +1820
|
0.5C
|
2C
|
|
N |
-260 to +1300
|
0.1C
|
.5C
|
