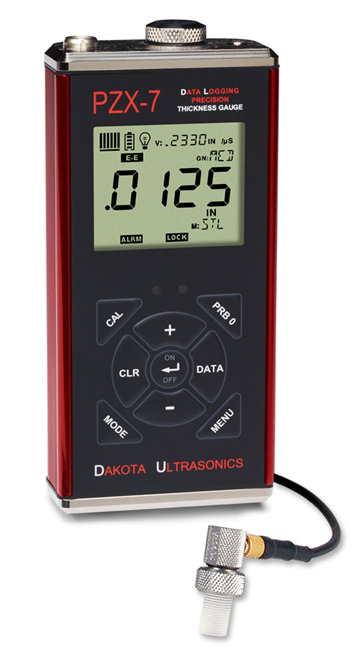

PZX1-DL Data-Logging Precision Ultrasonic Wall Thickness Gauge with USB Output
Order Me In, once ordered this item will likely dispatch before the 21st of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
$5,495.42 AUD Inc. GST
The PZX1-DL/PZX-7DL is a precision ultrasonic wall thickness gauge designed for high-resolution measurements on thin-wall metal and plastics. It is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments.
The built-in datalogger has a capacity of 10,000 data values stored in up to 40 batches with 250 values/batch which is transferred via the USB port using the supplied cable. The PZX-7DL does not require any software, it will be shown as a drive when connected to a PC allowing convenient drag-n-drop into your program of choice. Data is saved in a comma deliminated file format (.csv) which makes it compatible with all programs and software.
The PZX-7DL has measuring range in steel from 0.0060 to 1.0000 inch, (0.15 to 25.40 mm). Using a single element delay tip transducer, the gauges will measure thin materials and automatically remove any coatings in Echo-Echo Mode (E-E) as well as automatically switch to Interface Echo Mode (I-E)when measuring thicker materials, For measurement of plastics, the user would select Plastic Mode (PLAS) and use the option Graphite Delay Line Tip (p/n X-633-0000).
Additional Measuring Modes include Differential (DIFF) where a user sets a "nominal value" and the gauge displays the ± difference between then nominal and actual wall thickness, Alarm (user-set Hi/Low Limits) trigger Hi/Lo LED's when the measured values are out of tolerance and Velocity Mode
The PZX-7DL can also be used with single element contact transducers for wall thickness measurements up to 36 inches (923 mm).
Features
- Includes NIST Traceable Calibration Certificate
- Large, backlit LCD display retains last reading
- Resolution of 0.0001 inch (0.001 mm) with Selectable units of inch or mm
- IP 65 Rated for protection even in the toughest field conditions
- 5 Year Warranty, CE-Certified and Made in USA
- Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed
- Adjustable GAIN (AGC) in 5 steps to fine tune the gauge for use on challenging materials or applications
- Can be used with both Single Element Delay Line and contact transducers (5 to 20MHz)
- LCD shows Thickness Value, Velocity Setting, Gain Setting, Stability & Battery Indicators, Scan Mode, Zero and units
- Operates on two (2) AA Batteries - 45 hours continuous operation
- Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity
- Built-in datalogging for 10,000 data values stored in up to 40 batches with 250 values/batch with USB Output
- Powered by: 120MHz FPGA timing & 100 volt spike pulser
- Measure Modes: Pulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS)
- Optional serial RS-232 or Bluetooth output
- Additional Modes Include Differential (from user-entered "nominal value"), Alarm (user-set Hi/Low Limits) and Velocity Mode
Specifications
Measurement ranges:
- Total Measuring Range (Steel): 0.006 - 36.000 inches / 0.15 - 924 mm (depends on material and transducer/probe type)
- Measuring Modes: Pulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS), Differential, Alarm, Scan and Velocity (VX)
- Resolution: 0.0001" (0.001 mm) 0. 0.001" (0.01 mm), user-selected units and resolution
- Range with Standard Probe: 0.0060-1.0000" (0.15-25.40 mm) with standard delay line transducer in steel
- Gain: Automatic time dependent gain (TDG) with manual override
- Probe (Standard): 1/4" diameter, 15 MHz delay line transducer with cable (p/n T-402-5507)
- Probes (optional): Various Single Element Delay Line and Contact Transducers (5 to 20MHz)
- Display Update Rate: 10 Hz (10 updates/sec)
General:
- Housing Protection: IP65
- Operating Temperature: -22 to 167F (-30 to 75C)
- Output: USB single value only (no internal memory)TI-007DLX for a model with build-in memory for 40,000 values USB output
- Cable: 4 ft. (1.2 m) with Microdot/Lemo00 connector.
- Output (Optional): RS-232 and Bluetooth
- Display Backlight: Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
- Velocity Range: 0.0120 to .7300 in/μs (305 to 18,542 m/sec)
- Display: Multi-function 7 segment 4.5 digit liquid crystal display with Back-light
- Battery Life: Typically operates for 35 hours on alkaline and 18 hours on NiCad
- Weight: 11 ounces (308 grams)
- Dimensions: 2.5 x 5.17 x 1.25" (64 x 131 x 32 mm)
- Warranty: Gauge: 5 Years / Probes: 90 Days
- Battery Type: 2x AA 1.5V alkaline, 1.2V NiCad, or 1.5V lithium AA cells (rechargeable batteries can be used)
- Housing: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
- Certifications: NIST Traceable and MIL-STD-45662A
- Keypad: Sealed membrane that is resistant to both water and petroleum products. Seven or eight tactile-feedback keys
