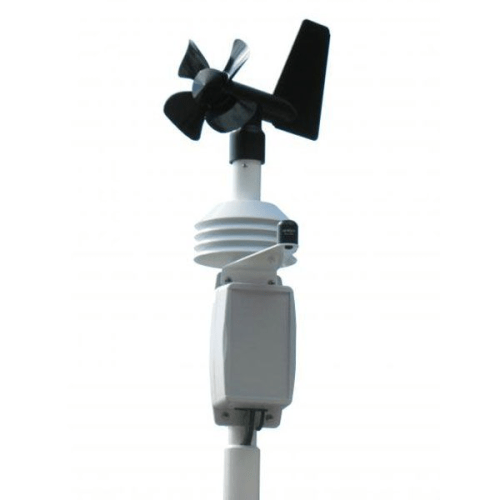

PVMet™ 200 Commercial Weather Station

ORDER ME IN
Product code: 800-0008

Backorder Now, once ordered your item will dispatch before the 10th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The PVmet 200 is a commercial weather station that includes sensors and specifications specific to PV power generation.

-Includes solar irradiance sensor, back-of-PV panel temp sensor, ambient temperature sensor, wind speed and wind direction sensor.

-Built with Modbus RS-485 Communication.

Read more

$4,159.00 AUD + GST
 $4,574.90 AUD Inc. GST
The PVmet-200 is our commercial model option. It features sensors specific to PV power generation. This low cost station is compact and simple to install.
Features:
- Adjustable Solar Global Irradiance Sensor
- Plane-of-Array Irradiance Sensor
- Back-of-PV Panel Temp Sensor (A second back-of-panel sensor may be added for an additional charge)
- Also includes Ambient Air Temperature Sensor, Wind Speed sensor and Wind Direction Sensor
- Modbus RS-485 Communication
- SunSpec Certified
Sensors:
- Ambient Air Temperature: Housed in a passive solar shield.
- Global Irradiance: The irradiance sensor is adjustable and can be set to provide global irradiance.
- Plane-of-Array Irradiance: A separate plane-of-array sensor is supplied with a mounting bracket to attach to the side of the PV panel.
- Back-of-Module Temperature: These sensors are attached to the back of the PV panel using thermal conductive adhesive tape. They provide accurate panel temperatures, an important parameter for
efficiency monitoring. One sensor is shipped with each system, but the PVmet-200 supports two sensors if desired.
- Wind Speed and Direction: A mini-airvane anemometer provides both wind speed and direction information.

Specifications

Global and Plane-of-Array (POA) Irradiance Sensors:
- Sensor Range: 0 to 1750 W/m2
- Accuracy: +/-5%
- Cosine Response 45: +/-1%
- Cosine Response 75: +/-5%
- Operational Temperature: -25 to 55 C
- Resolution: 1 W/m
Ambient Air Temperature Sensor:
- Range: - 40 to 80 C
- Accuracy: +/- 0.3 C
- Thermal Time Constant 30 sec.
- Resolution: 0.1 C
Back of Module (BOM) Temperature Sensors:
- Range: 0 to 67 m/s
- Accuracy: Greater of 0.45 m/s or 5%
- Resolution: 1 m/s
- Threshold: 0.45 m/s at a 10% Deflection
- Range: - 40 to 80 C
- Accuracy: +/- 0.3 C
- Thermal Time Constant: 270 sec.
- Cable Length: 7.62m
- Resolution: 0.1 C
Anemometer (Wind Speed):
RS-485/422 Serial Port:
- Mode: 2-Wire Half Duplex
- Connector: 4-Position Screw Terminal ( A(-), B(+), Signal and Earth Ground)
- Max Speed: 9600 Baud
- Termination: 120 ohms (Internal Jumper Enable)
Materials:
- Polyvinyl Chloride, Acrylonitrile Butadiene Styrene, Stainless Steel, Anodized Aluminum, Lexan, Delrin
Electronics:
- Lead-free RoHS Compliant
Physical:
- Packaged Dimensions: 73.99cm x 35.56cm x 20.32cm
- Packaged Weight: 3.17 kg
