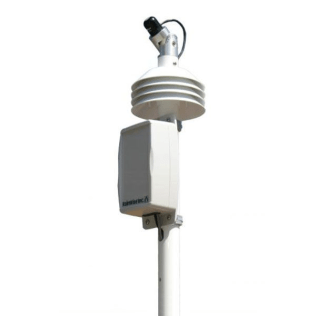

PVMet™ 100 Solar Monitoring Station

ORDER ME IN
Product code: 800-0014

Order Me In, Once ordered this item will likely dispatch before the 04th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The PVmet 100 standard weather station features sensors specific to PV power generation with an adjustable irradiance sensor for Global or Plane-of- Array monitoring.

-The irradiance sensor can be set to provide global irradiance when horizontal, or plane-of-array irradiance when installed to match PV panel angle.

-Built with Modbus RS-485 Communication.

Read more

$2,729.00 AUD + GST
 $3,001.90 AUD Inc. GST
The RainWise PVmet family of weather stations offers a powerful add-on to any solar plant monitoring system. Featuring accurate sensors and standard communication integration, the PVmet is an economical addition to insure the highest PV panel output.
The PVmet-100 is the Standard model option. It features sensors specific to PV power generation. This low cost station is compact and simple to install.
Features:
- Adjustable Irradiance Sensor for Global or Plane-of-Array Monitoring
- 1 or 2 x Back-of-PV Panel Temp Sensor(s)
- Ambient Air Temperature Sensor
- Modbus RS-485 Communication
Sensors:
- Ambient Air Temperature: Housed in a passive solar shield.
- Global Irradiance or Plane-of-Array Irradiance: The irradiance sensor can be set to provide global irradiance when horizontal, or plane-ofarray irradiance when installed to match PV panel angle.
- Back-of-Module Temperature: These sensors are attached to the back of the PV panel using thermal conductive adhesive tape. They provide accurate panel temperatures, an important
parameter for efficiency monitoring. One sensor is shipped with each system. The PVmet-75 supports two sensors. The second may be purchased separately
Specifications
Irradiance Sensor:
- Sensor Range: 0 to 1750 W/m2
- Accuracy: +/-5%
- Cosine Response 45: +/-1%
- Cosine Response 75: +/-5%
- Operational Temperature: -25 to 55 C
- Resolution: 1 W/m
Ambient Air Temperature Sensor:
- Range: - 40 to 80 C
- Accuracy: +/- 0.3 C
- hermal Time Constant 30 sec.
- Resolution: 0.1 C
Back of Module (BOM) Temperature Sensors:
- Range: - 40 to 80 C
- Accuracy: +/- 0.3 C
- Thermal Time Constant: 270 sec.
- Cable Length: 7.62m
- Resolution: 0.1 C
RS-485/422 Serial Port:
- Mode: 2-Wire Half Duplex
- Connector: 4-Position Screw Terminal ( A(-), B(+), Signal and Earth Ground)
- Max Speed: 9600 Baud
- Termination: 120 ohms (Internal Jumper Enable)
Materials:
- Polyvinyl Chloride, Acrylonitrile Butadiene Styrene, Stainless Steel, Anodized Aluminum, Lexan, Delrin
Electronics:
- Lead-free RoHS Compliant
Physical:
- Packaged Dimensions: 58.42cm x 25.4cm x 20.32cm
- Packaged Weight: 2.26kg
Warranty:
- 2 Years
